0-933-27 100m x 2.00mm˛ Blue-White 25A Auto Single Core Cable

£39.97  Excl. VAT
  (£47.96 Inc. VAT)
RRP:  £48.16
Savings before Cart:  £8.19
Earn 39 Loyalty Points
Available

Weight:  2.29kg


Model:  0-933-27
Bar Code:  5056119132090
Part Number:  0-933-27
Brand:  Durite
Colour:  Blue/White
Amperage:  25A
Material:  Copper/PVC

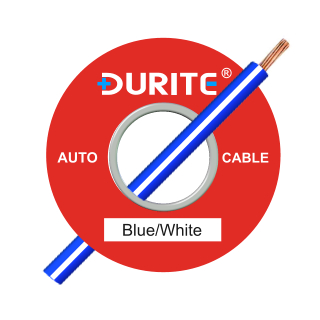

 Single core, 2mm² thin wall automotive blue with a white tracer PVC sheathed electric cable.

  • Length: 100m.
  • 2.00mm² blue-white (blue cable, white stripe).
  • 25A Automotive single core cable.
  • 28 Strand 0.30mm.
  • Outside diameter: 2.8mm.
  • To ISO 06722-4.

About the 2mm² Blue and White Thin Wall Electric Cable

 100 Metre rolls of 25A blue with a white tracer line auto electrical thin wall cable. Used for light to medium current loads, the 2mm² ‘thin wall’ automotive wire has a 28 strands, 0.30mm configuration, with a current load capability to a maximum of 25A continuous. With a reduced but harder PVC coating, thin wall cabling is now standard use for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electric cables, manufactured and tested to ISO6722-4 industry standards, reduce the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.

 Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 25 amp
Insulation colour Blue with a white tracer line
Wire 28/0.30mm copper
Cross section 2.00mm²
Voltage 60 volt DC maximum
Resistance 9.4mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.

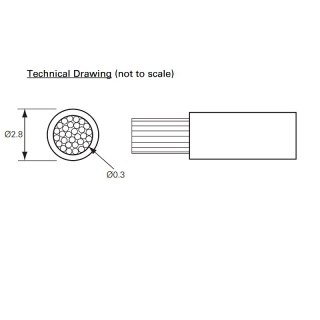

Overall diameter   2.8mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 100 Metres
Approvals ISO6722/4
Weight 2.28Kg
