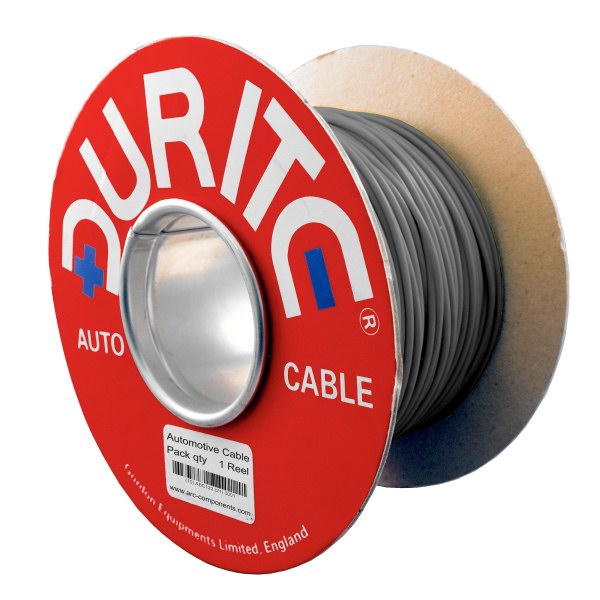

0-933-09 100m x 200mm˛ Grey 25A Auto Single Core Cable
Weight: 2.28 kg
Model: 0-933-09
Bar Code: 5056119132045
Part Number: 0-933-09
Brand: Durite
Colour Grey
Amperage 25A
Material Copper/PVC
Single core, 2mm² thin wall automotive grey PVC sheathed electric cable.
- Roll length 100m.
- 2.00mm² grey.
- 25A automotive single-core cable.
- 28 strands 0.30mm.
- Outside diameter: 2.8mm.
- To ISO 06722-4.
About The 2mm² Grey Thin Wall Electric Cable
100 Metre reel of 25A grey auto electrical thin wall cable. Used for light current loads, the 2mm² thin wall automotive wire has a 28 strands, 0.30mm construction, with a current load capability to a maximum of 25A continuous. With a reduced but harder PVC coating, thin wall cabling is now standard use for wiring looms and trees with modern vehicle manufacturers. The Durite range of thin wall electric cable, manufactured and tested to ISO 6722-4 industry standards, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
Specifications
| Type | Single core thin wall cable |
| Current Rating | 25 Amps |
| Insulation Colour | Grey |
| Wire | 28/0.30mm copper |
| Cross section | 2.00mm² |
| Voltage | 60 Volts DC maximum |
| Resistance | 9.4mΩ/m at 20℃ |
| Insulation | Hard grade PVC to BS6746 Type 5. |
| Overall Diameter | 2.8mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 100 Metres |
| Approvals | ISO6722/4 |
| Weight | 2.28Kg |
