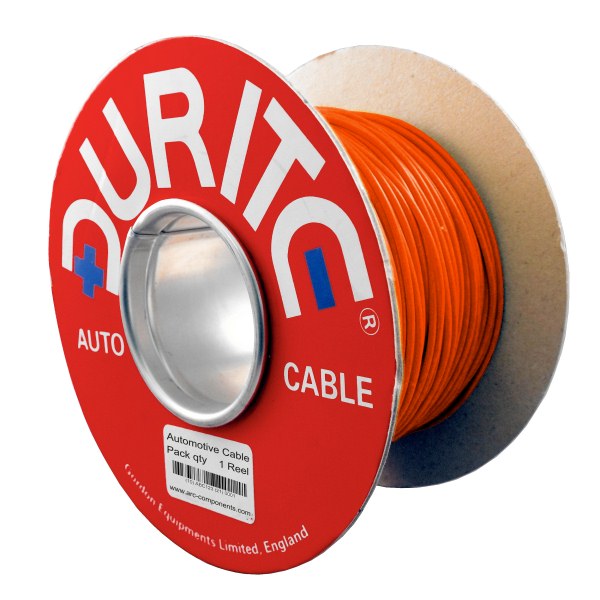

0-931-10 100m x 0.75mm² Orange 14A Single-core Thin Wall Auto Electric Cable
£23.26 Excl. VAT (£27.91 Inc. VAT)
£26.14 Excl. VAT
Initial Savings: £2.88
Earn 23 Loyalty Points
Weight: 920 g
Bar Code: 5056119131451
Part Number: 0-931-10
Voltage: 12V/24V/36V/48V DC
Durite 14A Orange automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 0.75mm² (19 AWG) Orange.
- 14 Amps single-core automotive cable and vehicle wiring.
- 24 copper strands at 0.20mm.
- Outside diameter: 1.9mm.
- Manufactured to ISO 6722-1:2011.
- Roll length: 100 Metres.
About the 0-931-10 0.75mm² Orange Thin Wall Electric Cable
Arc Components Limited presents the 0-931-10, Durite's light-duty 14A Orange automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.75mm² (19 AWG) and features 24 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 1.9mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 14 Amps.
The Durite 0-931-10 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core thin wall cable |
|Current Rating ||14 Amps |
|Insulation Colour ||Orange |
|Wire ||24/0.20mm copper |
|Cross-section ||0.75mm² (19AWG) |
|Voltage ||60 Volts DC Max. |
|Resistance ||24.7mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC, which offers good resistance to abrasion and cut-through. |
|Overall Diameter ||1.9mm |
|Temperature ||Minus 40 to +105℃ |
|Length of Cable ||100 Metres |
|Approvals ||ISO6722-1:2011 |
|Weight ||920g |
