0-447-46 Pack of 50 Soft PVC Cable Wiring Grommets - 16mm Diameter Hole

£3.77 Excl. VAT
RRP £4.28 Excl. VAT
Initial Savings
£0.51
(£4.52 Inc. VAT)
Earn 3 Loyalty Points

Available
Model
0-447-46
Bar Code
5056119149180
Part Number
0-447-46
Brand
Durite
Colour
Black
Material
PVC
Weight
54 g


 Pack of 50, soft PVC wiring grommets.

  • Used for cable entry holes in bulkheads and panels to the listed sizes.
  • Best fit: 16mm panel hole.
  • Pack quantity: 50 pieces per pack.
  • Material: soft PVC.

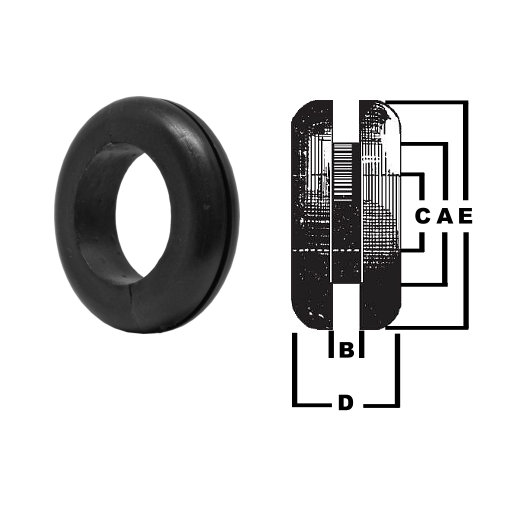

Sizes as Image

  • A: 15.80mm
  • B: 1.60mm
  • C: 12.20mm
  • D: 5.90mm
  • E: 19.00mm

About The 16mm Diameter Hole Cable and Wiring Grommets

 Pack of fifty 16.00mm diameter hole wiring or cable grommets. Using the letters on the picture, the ‘best fit’ value for the clearance holes diameter should be halfway between the A and E measurement.

 To aid the choice of the correct size wire or cable grommet; after the cable size (C), the next important factor is A and E, if your hole size is too close to A, the grommet push fit would be difficult to seat, too close to E and the grommet could pull free with the movement of the cable.
