0-447-55 Pack of 25 Soft PVC Cable Wiring Grommets - 25mm Diameter Hole

£2.94  Excl. VAT
  (£3.53 Inc. VAT)
RRP:  £3.30  Excl. VAT
Initial Savings:  £0.36
Earn 2 Loyalty Points
Available


Weight:  70 g




Model:  0-447-55
Bar Code:  5056119149203
Part Number:  0-447-55
Brand:  Durite
Colour  Black
Material  PVC

Share

 Pack of 25, soft PVC wiring grommets.

  • Used for cable entry holes in bulkheads and panels to the listed sizes.
  • Best fit: 25mm panel hole.
  • Pack quantity: 25 pieces per pack.
  • Material: soft PVC.

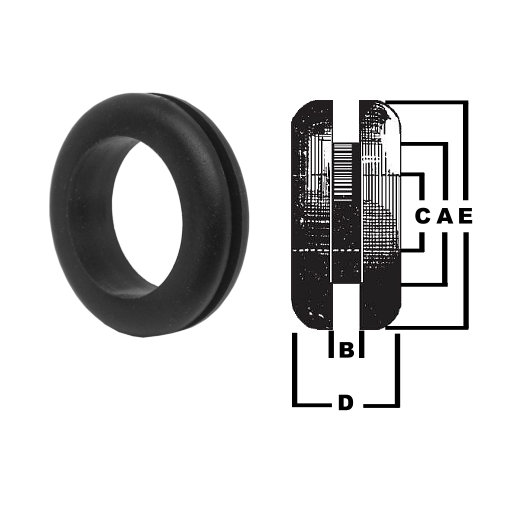

Sizes as Image

  • A: 25.00mm
  • B: 1.60mm
  • C: 19.50mm
  • D: 7.30mm
  • E: 29.20mm

About The 25mm Diameter Hole Cable and Wiring Grommets

 Pack of twenty five 25.00mm diameter hole wiring or cable grommets. Using the letters on the picture, the ‘best fit’ value for the clearance holes diameter should be halfway between the A and E measurement.

 To aid the choice of the correct size wire or cable grommet; after the cable size (C), the next important factor is A and E, if your hole size is too close to A, the grommet push fit would be difficult to seat, too close to E and the grommet could pull free with the movement of the cable.
