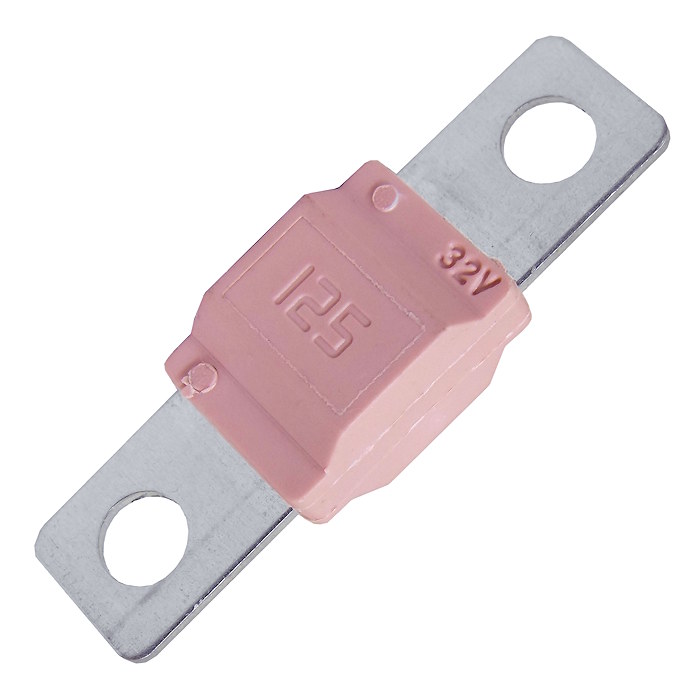

0-368-22 Durite Aftermarket Pink MIDI Type Fuse - 125A

£1.44  Excl. VAT
  (£1.73 Inc. VAT)
RRP:  £1.62  Excl. VAT
Initial Savings:  £0.18
Earn 1 Loyalty Points
Available


Weight:  10 g





Model:  0-368-22
Bar Code:  5056119147704
Part Number:  0-368-22
Brand:  Durite
Colour  Pink
Voltage  12V/24V DC
Amperage  125A
Material  Zinc Alloy/Thermoplastic


 Durite brand 125 Amps pink Midi type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.

  • Colour coded: Pink.
  • 125A continuous use.
  • 250A blow rating.
  • Voltage rating: 32Vdc.
  • Zinc alloy terminal.
  • Thermoplastic housing.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.

Fits Fuse Holder Part Numbers

  • 0-378-85 MIDI fuse holder

Dimensions

  • Length: 41mm.
  • Body width: 12mm.
  • Blade width: 10mm.
  • 5.50mm (M5 bolt) hole centers: 30mm.

About The 125 Amps Midi Style Aftermarket Fuses

 The 125A brown colour coded bolt down Midi style fuse from the Durite aftermarket range of automotive fuses is ideal for space-saving fuse solutions. Designed for medium to heavier duty battery, alternator and auto electric switchgear protection on vehicles and industrial equipment. The 125A continuous rating gives high current circuit protection on equipment circuits that are passing current (always on), the 250A blow rating is for intermittent circuits where the zinc alloy fuse element requires to heat up from cold before blowing.

 The Midi style fuse range is ideal for medium to heavy-duty equipment circuits and medium to heavy-duty gauge electric cables.

Specifications

Type Midi style fuse
Voltage To 32 Volts DC
Colour code Brown
Current rating 125 Amps continuous
Blow rating (from cold) 250 Amps intermittent
Body Material Polybutylene Terephthalate (PBT)
Terminal Zinc
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Mounting Torque M5 4.5 Nm +/- 1Nm
Weight 10g




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A
0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A

Standard aftermarket Green MEGA type fuse for heavy-duty application. Fuse rating of 125 Amps for continuous use.


Available
 Reference: 0-366-12 £3.80   £3.38
0-366-15 Durite Aftermarket Orange MEGA Type Fuse - 150A
0-366-15 Durite Aftermarket Orange MEGA Type Fuse - 150A

Standard aftermarket Orange MEGA type fuse for heavy-duty application. Fuse rating of 150 Amps for continuous use.


Available
 Reference: 0-366-15 £3.80   £3.38

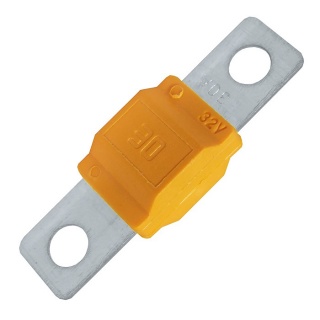

0-368-13 Durite Aftermarket Orange MIDI Type Fuse - 30A
0-368-13 Durite Aftermarket Orange MIDI Type Fuse - 30A

Durite Orange MIDI type aftermarket fuse with a 30 Amps continuous and a 60 Amps blow rating. Fits holders 0-378-00 and 0-378-85.


Available
 Reference: 0-368-13 £1.62   £1.44


Related Products
0-366-25 Durite Aftermarket Pink MEGA Type Fuse - 250A
0-366-25 Durite Aftermarket Pink MEGA Type Fuse - 250A

Standard aftermarket Pink MEGA type fuse for heavy-duty application. Fuse rating of 250 Amps for continuous use.


Available
 Reference: 0-366-25 £3.80   £3.38
0-368-13 Durite Aftermarket Orange MIDI Type Fuse - 30A
0-368-13 Durite Aftermarket Orange MIDI Type Fuse - 30A

Durite Orange MIDI type aftermarket fuse with a 30 Amps continuous and a 60 Amps blow rating. Fits holders 0-378-00 and 0-378-85.


Available
 Reference: 0-368-13 £1.62   £1.44

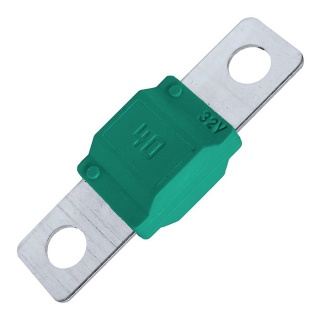

0-368-14 Durite Aftermarket Green MIDI Type Fuse - 40A
0-368-14 Durite Aftermarket Green MIDI Type Fuse - 40A

Durite Green MIDI type aftermarket fuse with a 40 Amps continuous and a 80 Amps blow rating. Fits holders 0-378-00 and 0-378-85.


Available
 Reference: 0-368-14 £1.62   £1.44

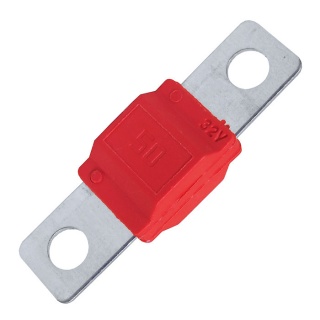

0-368-15 Durite Aftermarket Red MIDI Type Fuse - 50A
0-368-15 Durite Aftermarket Red MIDI Type Fuse - 50A

Durite Red MIDI type aftermarket fuse with a 50 Amps continuous and a 100 Amps blow rating. Fits holders 0-378-00 and 0-378-85.


Available
 Reference: 0-368-15 £1.62   £1.44
0-368-16 Durite Aftermarket Yellow MIDI Type Fuse - 60A
0-368-16 Durite Aftermarket Yellow MIDI Type Fuse - 60A

Durite Yellow MIDI type aftermarket fuse with a 60 Amps continuous and a 120 Amps blow rating. Fits holders 0-378-00 and 0-378-85.


Available
 Reference: 0-368-16 £1.62   £1.44

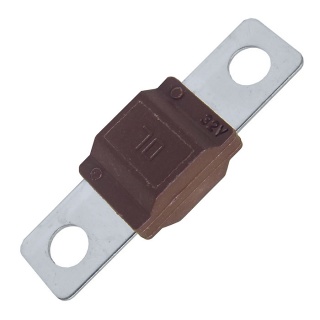

0-368-17 Durite Aftermarket Brown MIDI Type Fuse - 70A
