0-327-61 Nylon Unsealed T-Piece Connector 17NW 7.5NW

£1.33  Excl. VAT
  (£1.60 Inc. VAT)
RRP:  £1.60
Savings before Cart:  £0.27
Earn 1 Loyalty Points
Available

Weight:  10g


Model:  0-327-61
Bar Code:  5056119107876
Part Number:  0-327-61
Brand:  Durite
Size:  17NW/7.5NW
Colour:  Black
Material:  Nylon

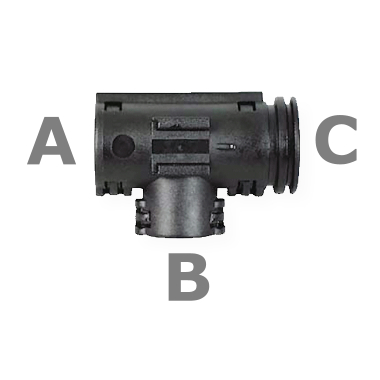

 Nylon unsealed automotive T-piece connector. Black nylon unsealed T-piece connector, for fitting onto unsplit tubing to create an electric cable tubing junction; sizes A, B and C are clearly marked on the product image.

  • Used with unsplit tubing.
  • Unsealed.
  • Black nylon.
  • Sold single.

Gland Size

  • A: 17NW
  • B: 7.5NW
  • C: 17NW

About the Auto Cable Tubing T-Pieces

 17NW to 7.5NW (nominal width 17mm and 7.5mm) auto electrical T-piece connector. used with unsplit tube conduit to navigate around components and mechanical parts when creating an electrical cable loom run around a vehicle chassis. T-piece connectors make a junction spur in the wiring run, where a different size (in the case of this unit) tubing can be joined into the conduit.

Specifications

Type ‘T’ piece connector
Port A Nominal Width 17.0mm
Port B Nominal Width 7.5mm
Port C Nominal Width 17.0mm
Height (h) 37.0mm
Length (l) 40.8mm
Case type B
Closure Snap together
Material Nylon (Polyamide 66)
Temperature range Minus 40 to +135℃ (maximum 150℃ for 240 hours)
