0-023-00 Durite Positive and Negative Quick Release Battery Terminals

£20.42  Excl. VAT
  (£24.50 Inc. VAT)
RRP:  £22.94  Excl. VAT
Initial Savings:  £2.52
Earn 20 Loyalty Points
Available


Weight:  500 g





Model:  0-023-00
Bar Code:  5056119103441
Part Number:  0-023-00
Brand:  Durite
Colour:  Red/Blue
Voltage:  12V/24V DC
Material:  Brass

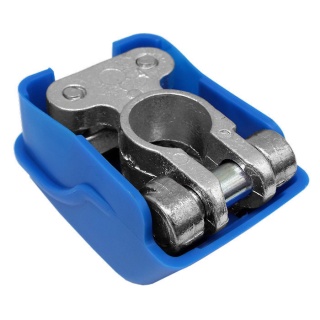

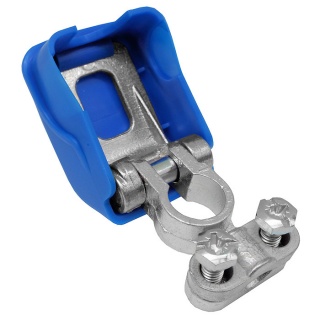

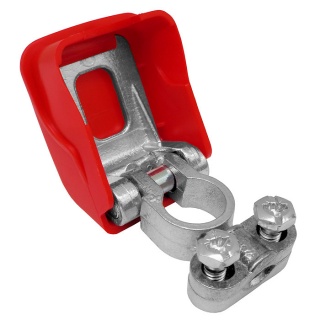

Durite quick-release battery terminals, consisting of one Red cover Positive (+) and one Blue cover Negative (-) terminal.

  • Pair of quick-release battery terminals.
  • A quick-change solution to standard battery terminals.
  • Pack Quantity: 1 x Positive (+) and 1 x Negative (-) terminal.

About The Quick Release Battery Terminals

A practical solution to ordinary battery terminals using a quick-release clamp mechanism to easily attach or detach the terminals from a vehicle's battery. Particularly useful in applications like Leisure Boat day trips and outings, leaving you to enjoy hassle-free time on the water!

Dimensions

  • Cover: Length 60mm and Width 44mm
  • Terminal Closed: Length 51mm and Width 31mm
  • Terminal Open: Length 47mm, Width 33mm and Depth 12mm

Specifications

Type Quick Release Battery Terminals
Material Alloy terminals with tin coating
Resistance Class 4.8
Tensile Strength for Traction 400N/mm²
Limit of Elasticity 320N/mm²
Minimum Elongation 14%
Electrical Conductivity 21%
Cover Material Riblene MR30 Low-Density Polyethylene
Density (D1505) 0.924 G/CM³
Flammability Rating UL94 V-2
Max Amperage 1000Ah
Temperature Range (Centigrade) -40 to +105℃
Maximum Cable Size 50mm²
Approvals UNI EN 1982:2000




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-187-00 Pair of 25A Red-Black Crocodile Clips Jaw 32mm
0-187-00 Pair of 25A Red-Black Crocodile Clips Jaw 32mm  (1)

1 pair of Durite 25A plated steel crocodile clips. One Black and one Red clip insulated in soft PVC covers.


Available
 Reference: 0-187-00 £5.76   £5.13
Durite Yellow 9.50mm Push-On Automotive Crimp Terminal | Re: 0-001-19
Durite Yellow 9.50mm Push-On Automotive Crimp Terminal | Re: 0-001-19

Durite Yellow pre-insulated automotive 9.5mm push-on terminals. Conductor size: 3mm² to 6.0mm² (44-84 0.30mm).


Available
 Reference: 0-001-19 From:  £7.19
0-364-50 Splashproof On-Off Single-pole Switch Nylon Toggle Lever 10A
0-364-50 Splashproof On-Off Single-pole Switch Nylon Toggle Lever 10A

On-Off single-pole switch with PVC shroud over nylon toggle lever, 6.3mm terminals. It requires a 13mm panel hole and is rated 10 Amps at 12Vdc.


Available
 Reference: 0-364-50 £7.08   £6.30


Related Products

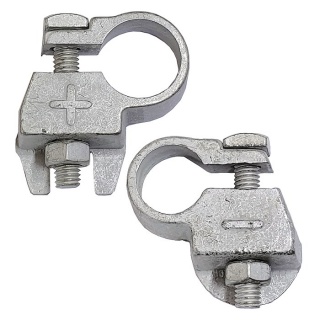

0-022-00 Pack of 2 Positive and Negative Ford Type Terminal Conversion
