1-023-00 Durite Single Positive Quick Release Battery Terminal

£10.43  Excl. VAT
  (£12.52 Inc. VAT)
RRP:  £11.72  Excl. VAT
Initial Savings:  £1.29
Earn 10 Loyalty Points
Available


Weight:  250 g


Model:  1-023-00
Bar Code:  5056119134100
Part Number:  1-023-00
Brand:  Durite
Colour  Red/Blue
Material  Brass

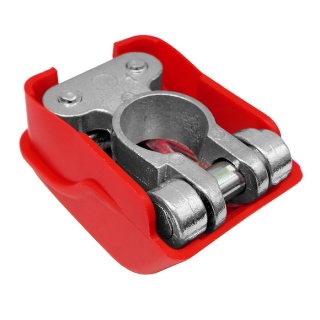

Durite Positive (+) quick-release battery terminal.

  • Red Positive quick-release battery cable connector.
  • The quick-change solution to a standard positive battery terminal.
  • Pack Quantity: 1 x Positive (+) terminal.

About The Quick Release Positive Battery Terminal

A practical solution to ordinary Positive (+) battery terminals. By means of a quick-release clamp mechanism, you can easily attach or detach the terminals from a vehicle battery. Particularly useful in applications like Leisure Boat day trips and outings, leaving you to enjoy hassle-free time on the water!

Dimensions

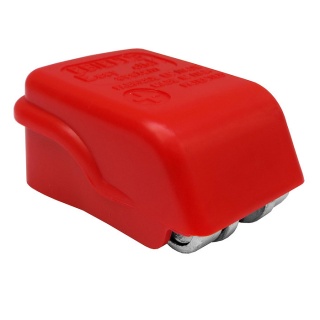

  • Red Cover: Length 60mm and Width 44mm
  • Terminal closed: Length 51mm and Width 31mm
  • Terminal open: Length 47mm, Width 33mm and Depth 12mm

Specifications

Type Quick Release Positive Battery Terminal
Material Alloy terminals with tin coating
Resistance Class 4.8
Tensile Strength for Traction 400N/mm²
Limit of Elasticity 320N/mm²
Minimum Elongation 14%
Electrical Conductivity 21%
Cover Material Riblene MR30 Low-Density Polyethylene
Density (D1505) 0.924 G/CM³
Flammability Rating UL94 V-2
Max Amperage 1000Ah
Temperature Range (Centigrade) -40 to +105℃
Maximum Cable Size 50mm²
Approvals UNI EN 1982:2000
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

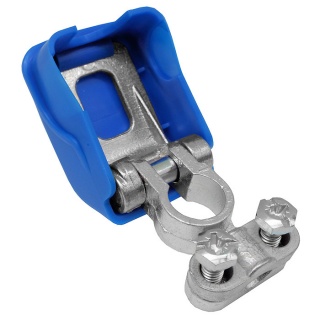

2-023-00 Durite Single Negative Quick Release Battery Terminal
2-023-00 Durite Single Negative Quick Release Battery Terminal

Single Negative (-) battery terminal with a quick-release mechanism. A practical alternative to ordinary terminals when a speedy disconnect is required.

Available
 Reference: 2-023-00 £11.72   £10.43

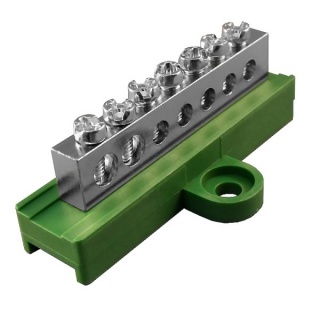

0-005-38 Durite 7-Way Terminal Block
0-005-38 Durite 7-Way Terminal Block

Durite 7-way terminal block with 2 x 5.4mm and 5 x 4mm diameter cable entry holes. Fixing hole 3.2mm diameter.

Available
 Reference: 0-005-38 £8.36   £7.44

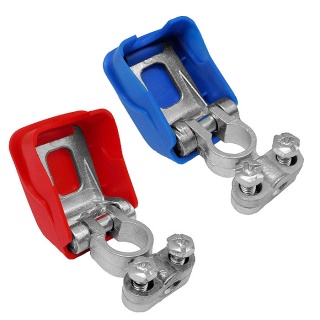

0-023-00 Durite Positive and Negative Quick Release Battery Terminals
