SW80B-548 Albright Single-acting Solenoid Contactor 24V Intermittent

£36.75  Excl. VAT
  (£44.10 Inc. VAT)
 Excl. VAT

Earn 36 Loyalty Points
No stock


Weight:  400 g





Model:  SW80B-548
Bar Code:  DNA
Part Number:  SW80B-548
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

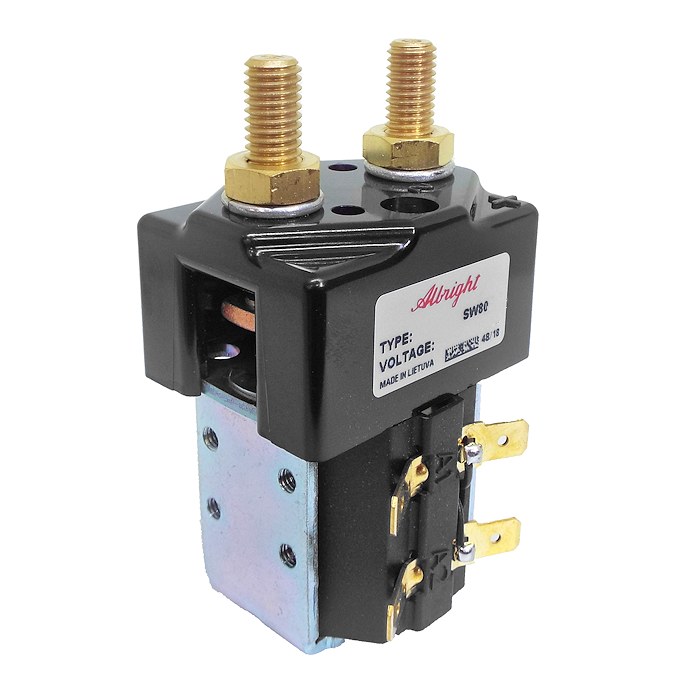

 Albright SW80B-548 24Vdc 100A single-acting solenoid contactor, intermittent.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • No hardware fitted (No Zinc nuts and spring washers).

Associated Products

  • 2070-57 Repair contact kit
  • 2070-124 Auxiliary switch kit
  • 2070-40 Albright SW80 Solenoid L-Shape Mounting Bracket
  • 2126-48A Albright SW80 and SW82 Solenoid Mounting Bracket
  • 2070-983A Albright SW80 Solenoid Curved Mounting Bracket
  • 2071-428 Albright SW80 and SU80 Solenoid DIN Rail Bracket

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW80 range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the Positive markings on the top cover of the contactor must be observed.

About Intermittent (Int.) SW80 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 24V D.C.
Coil Type Intermittent
Amps 100 Amps
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.5 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 400g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
