SW80B-2428 Albright Single-acting Solenoid Contactor 48V Continuous

SW80B-2428 Albright Single-acting Solenoid Contactor 48V Continuous
£46.32 Excl. VAT
(£55.58 Inc. VAT)
Earn 46 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW80B-2428
Bar Code
DNA
Part Number
SW80B-2428
Brand
Albright
Colour
Black
Voltage
48V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
 Intrastat HS Code  8536490000
Ship Weight
400 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

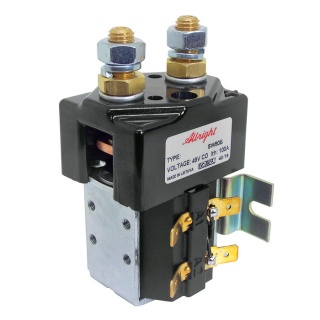

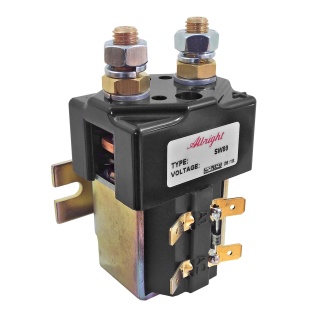

 Albright SW80B-2428, 48 Volts DC single-acting solenoid contactor with magnetic blowouts and a DIN rail bracket fitted, continuous.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.. They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • Fitted with a mounting bracket (2071-428) on the right-hand side of the 6.3mm energising terminals.
  • An enclosed top cover is fitted.
  • Diode fitted.
  • Armature cap fitted.
  • Backplate fitted.

Associated Products

  • 2070-57: Repair contact kit
  • 2070-124: Auxiliary switch kit
  • 2071-428: Replacement DIN rail bracket

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW80 range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the Positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW80 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
48V D.C.
Coil Type
Continuous
Amps
100 Amps
Coil Resistance (Ohms)
212
Pull In Voltage (V)
32.0 Maximum
Drop Out Voltage (V)
12.0 Maximum
Coil Power Dissipation (W)
10.87
Typical Pull-In Time
20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Guideline Weight
400g
Application
Interrupted
Uninterrupted
Thermal Current Rating
100A
125A
Intermittent Current Rating


30% Duty
185A
230A
40% Duty
160A
200A
50% Duty
140A
175A
60% Duty
130A
160A
70% Duty
120A
150A
