SW80B-2192 Albright Single-acting Solenoid Contactor 48V Continuous

£34.57  Excl. VAT
  (£41.48 Inc. VAT)


Earn 34 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  400 g


Model:  SW80B-2192
Bar Code:  DNA
Part Number:  SW80B-2192
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

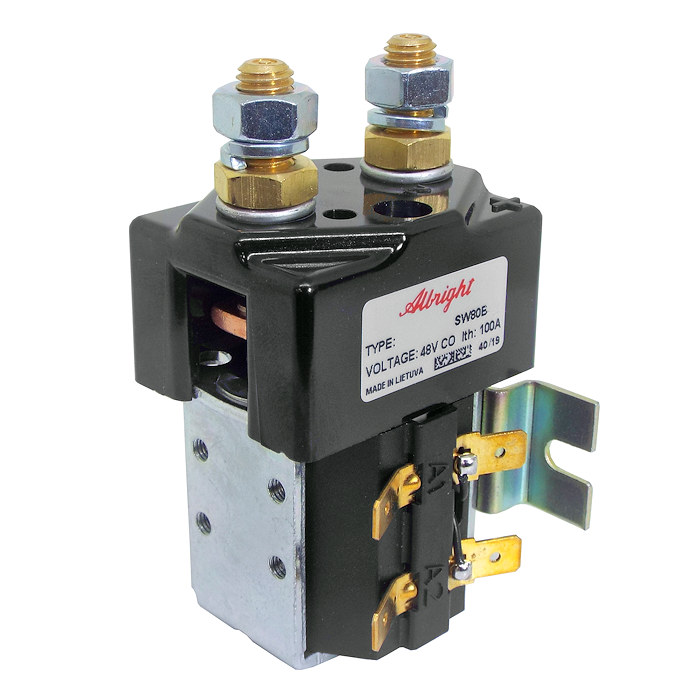

 Albright SW80B-2192 single-acting solenoid contactor 48V continuous.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.

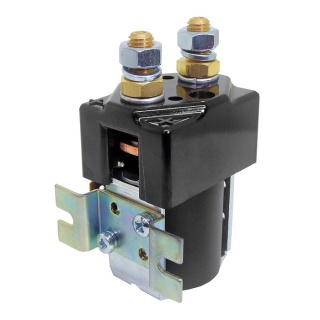

  • Fitted with a mounting bracket (2126-48A) on the right-hand side of the 6.3mm energising terminals.

Associated Products

  • 2070-57: Repair contact kit.
  • 2070-124: Auxiliary switch kit.
  • 2126-48A: Mounting bracket.

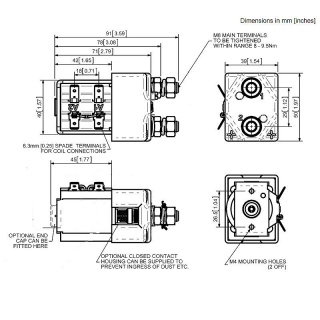

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW80 range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the Positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW80 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 48V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 212
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 10.87
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
< 40mV
Operating Ambient Temperature -40 to +60℃
Weight 400g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
