SW80AB-182 Albright Single-acting Solenoid Contactor 24V Continuous

SW80AB-182 Albright Single-acting Solenoid Contactor 24V Continuous
SW80AB-182 Albright Single-acting Solenoid Contactor 24V Continuous
SW80AB-182 Albright Single-acting Solenoid Contactor 24V Continuous
SW80AB-182 Albright Single-acting Solenoid Contactor 24V Continuous
£49.47 Excl. VAT
(£59.36 Inc. VAT)
Earn 49 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks
Model
SW80AB-182
Bar Code
DNA
Part Number
SW80AB-182
Brand
Albright
Colour
Black
Voltage
24V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Weight
400 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of 9 to 12 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

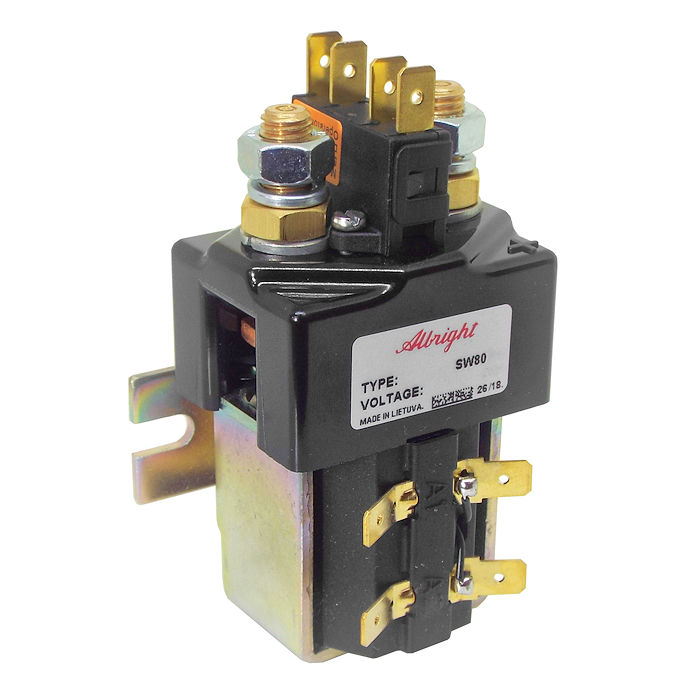

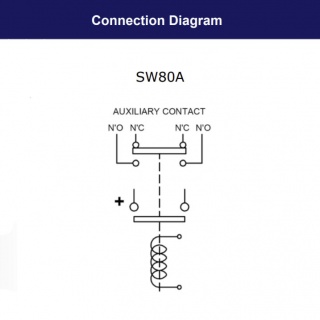

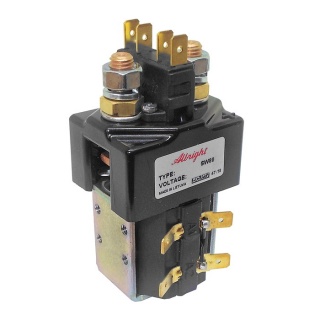

 Albright SW80AB-182 24Vdc single-acting solenoid contactor with auxiliary microswitch, integral bracket and magnetic blowouts, continuous.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks and powered invalid cars etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches which cannot be serviced or inspected for contact wear.
  • Repair contact kit part number: 2070-57.
  • Auxiliary switch kit (fitted) part number: 2070-124.

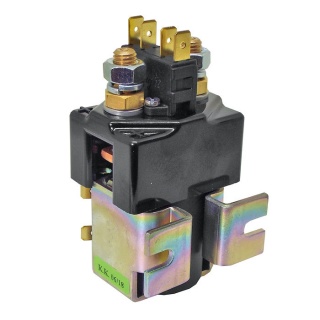

  • Integral bracket frame fitted.

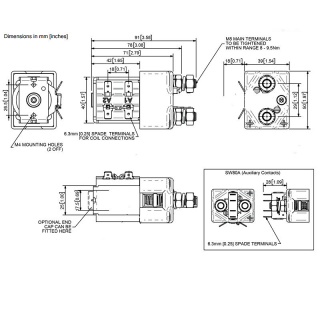

Dimensions (Contactor only)

  • Height including terminals and coil base cap:94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW80 range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the Positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW80 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 24V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 52
Pull-In Voltage (V) 16.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 11.08
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
< 40mV
Operating Ambient Temperature -40 to +60℃
Weight 420g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
