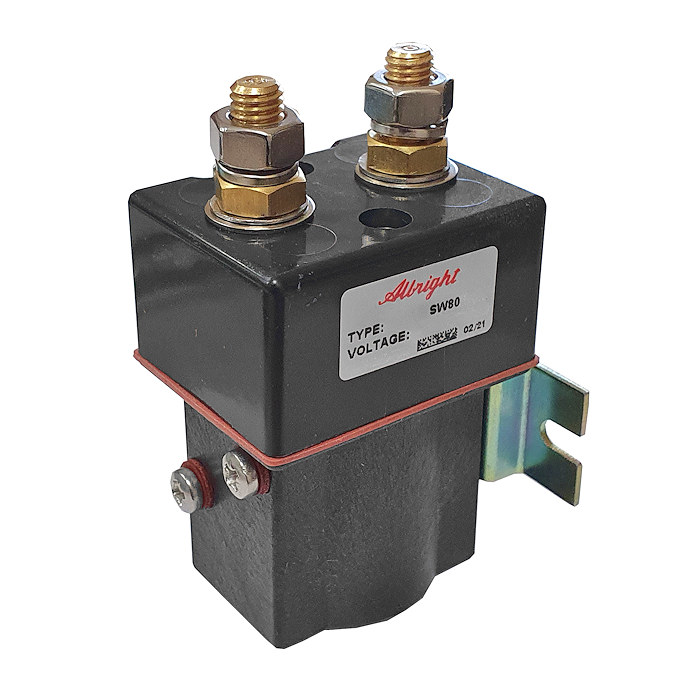

SW80-415P Albright Solenoid Contactor 48V Continuous Sealed to IP66

SW80-415P Albright Solenoid Contactor 48V Continuous Sealed to IP66
SW80-415P Albright Solenoid Contactor 48V Continuous Sealed to IP66
SW80-415P Albright Solenoid Contactor 48V Continuous Sealed to IP66
SW80-415P Albright Solenoid Contactor 48V Continuous Sealed to IP66
£40.51 Excl. VAT
(£48.61 Inc. VAT)
Earn 40 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW80-415P
Bar Code
DNA
Part Number
SW80-415P
Brand
Albright
Colour
Black
Voltage
48V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
 Intrastat HS Code  8536490000
Ship Weight
400 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SW80-415P single-acting solenoid contactor, 48Vdc, continuous.

  • Sealed to IP66 for weatherproofing and are suitable for internal marine applications.
  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches.
  • Repair contact kits are not available for this unit due to the weatherproofing.
  • Mounting bracket 2126-48A fitted the left-hand side of the coil terminals.

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

About Continuous (CO.) SW80P Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 48V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 212
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 10.87
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
< 40mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Weight 390g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
