SW60-7 Albright 48V DC Single Acting Miniature Solenoid Intermittent 80A

£15.04  Excl. VAT
  (£18.05 Inc. VAT)


Earn 15 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  190g


Model:  SW60-7
Part Number:  SW60-7
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

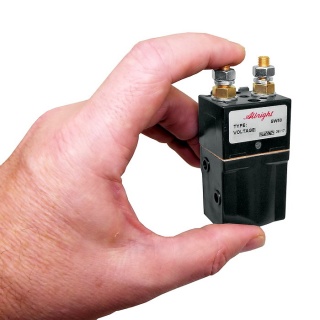

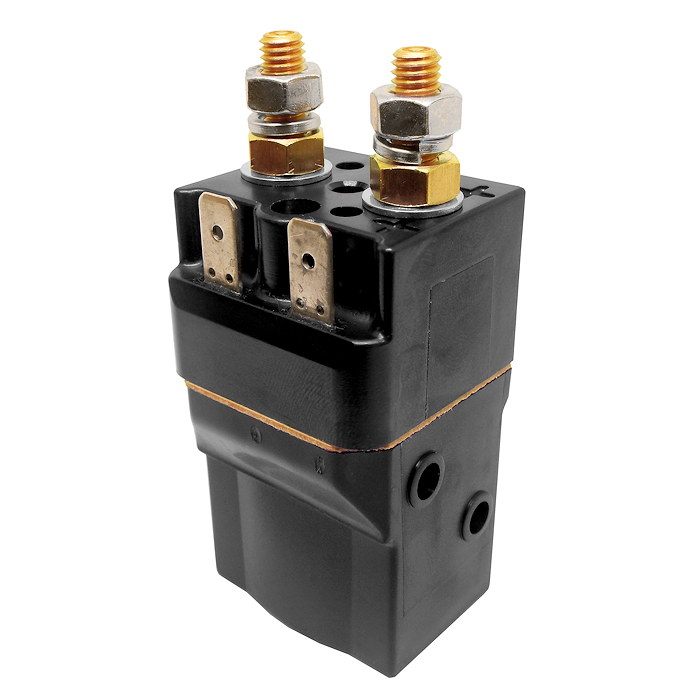

 SW60-7 series 48 volt dc miniature intermittent solenoid contactor.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ best quality materials: phenolic contact housings, silver alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

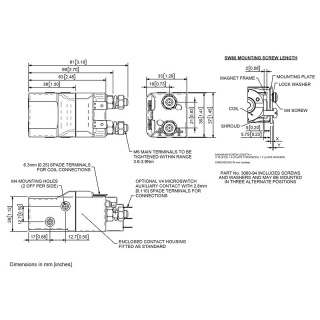

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

About Intermittent (Int.) SW60 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

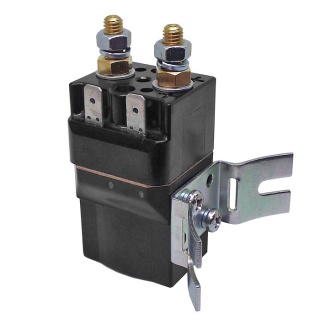

 The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

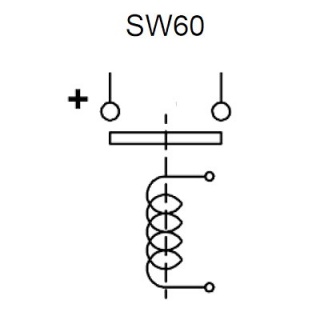

Device TypeSW60 - Single Pole Single Throw Contactor
Voltage48V D.C.
Coil TypeIntermittent
Amps80A
Coil Power Dissipation10 - 14 Watts
Typical Pull-In Time15ms
Typical Voltage Drop per pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature-40 to +60℃ (guide)
Guideline Weight190g
ApplicationInterrupted - Uninterrupted
Thermal Current Rating80A
Intermittent Current Rating:
30% Duty145A
40% Duty125A
50% Duty115A
60% Duty105A
70% Duty95A
