SW380-1 Albright Double Acting Reversing Solenoid Bank - 12V Continuous

£118.69  Excl. VAT
  (£142.43 Inc. VAT)


Earn 118 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.51 kg


Model:  SW380-1
Bar Code:  DNA
Part Number:  SW380-1
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

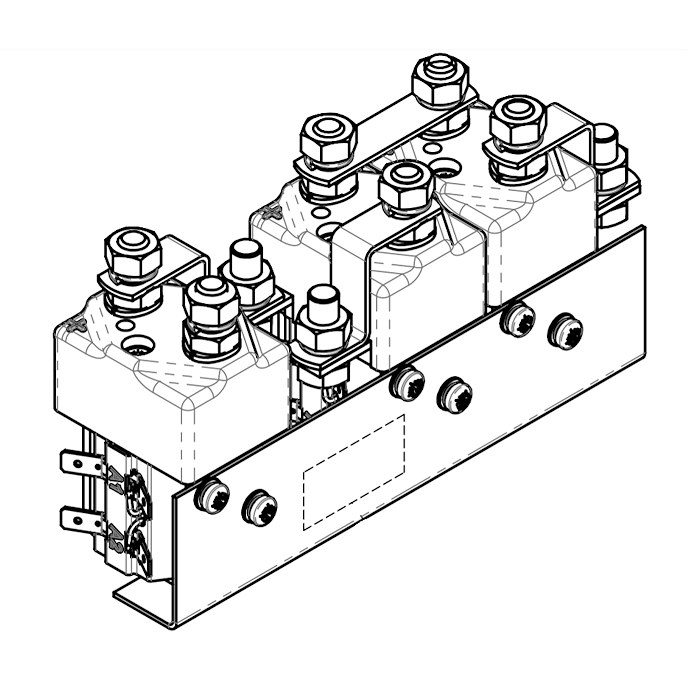

 SW380-1 double acting strapped pair and single pole solenoid contactor bank, 12V continuous.

  • Double acting strapped pair 12 Volts DC contactor bank for motor reversing.
  • The SW88 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Contactor bank comprising of: 1 x SW80 and 1 x SW88.
  • Repair contact kit part number: 2070-151 (for the SW88) and 2070-57 (for the SW80).
  • Auxiliary switch kit part number: 2070-124 (1 kit does 1 x coil).

About the Continuous SW380-1 Reversing Contactors

 Continuous contactors by design are predominantly for drive functions on vehicles; they make and break slower than intermittent solenoids, and are recommended for prolonged contact periods.

 The SW380-1 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW88 has M8 stud main terminals and 6.3mm spade coil connections, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type 1 x SW88 and 1 x SW80 contactor bank.
Voltage 12V D.C.
Coil Type Continuous
Amps 100A
Coil Power Dissipation 7 - 13 Watts
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: 40mV
Normally Closed: 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 960kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
