SW202N-89 Albright Double Acting Motor Reversing Solenoid 24V Intermittent

£205.92  Excl. VAT
  (£247.10 Inc. VAT)


Earn 205 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  3.24kg


Model:  SW202N-89
Part Number:  SW202N-89
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

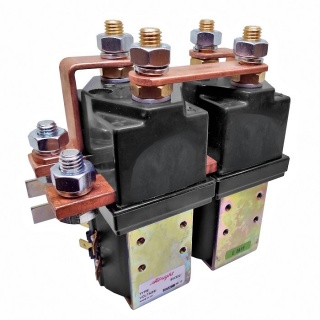

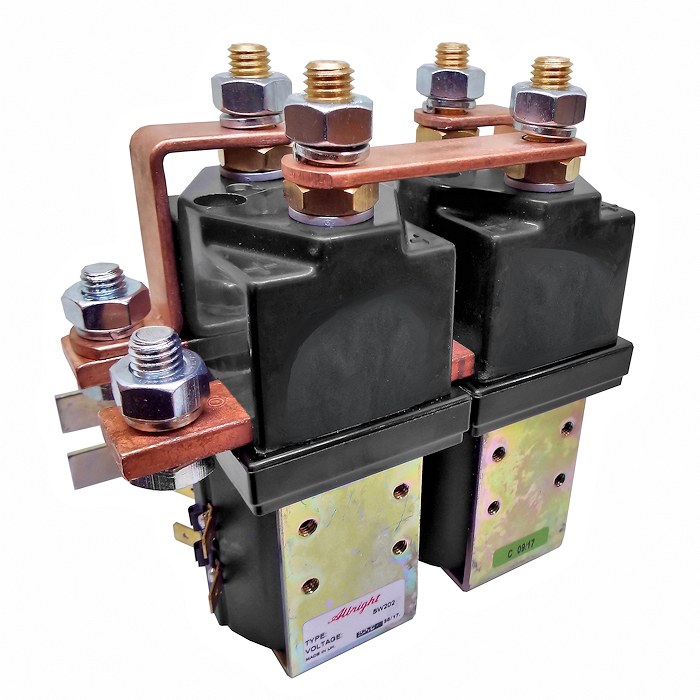

 SW202N-89 double acting strapped pair solenoid contactor, 24V intermittent with enclosed top covers and no magnetic blowouts.

  • Double-acting strapped pair 24-volt dc contactor for motor reversing.
  • The SW202 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, warehouse forklifts, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-136.
  • Auxiliary switch kit part number: 2155-202 (1 kit does 1 x coil).
  • Fitted without magnetic blowouts.
  • Fitted with enclosed top covers.

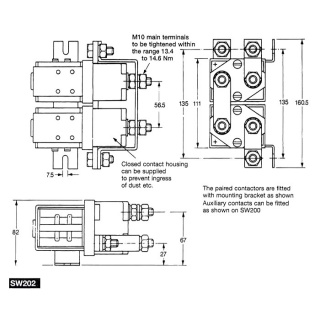

Dimensions

  • Height including terminals and coil base cap: 152mm.
  • Assembly width including bars and bracket: 160.5mm.
  • Cap width: 2 x 48mm.
  • Total depth including bracket: 82mm.

About the Intermittent SW202N-89 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they switch quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

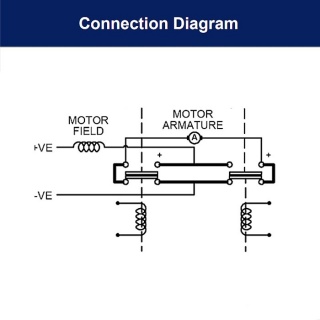

 The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW202N-89 - Paired Single Pole Double Throw Contactor
Voltage 24V D.C.
Coil Type Intermittent
Amps 250A
Coil Resistance (Ohms) 18
Pull-In Voltage (V) 15.0 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 32.00
Typical Pull-In Time 40ms
Typical Voltage Drop per pole
across New Contacts at 100A
Normally Open: 40mV
Normally Closed: 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 3.35kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A



Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
