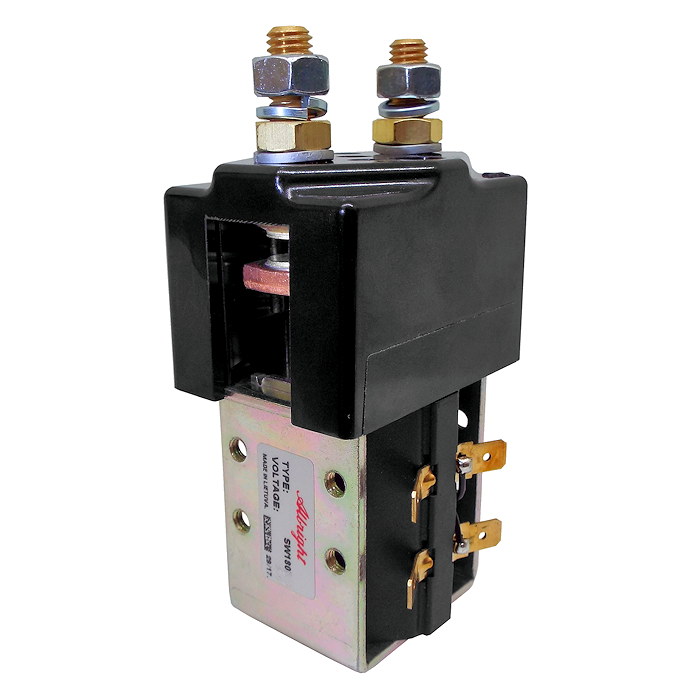

SW180B-8 Albright Single-acting Solenoid Contactor 48V Continuous

SW180B-8 Albright Single-acting Solenoid Contactor 48V Continuous
SW180B-8 Albright Single-acting Solenoid Contactor 48V Continuous
SW180B-8 Albright Single-acting Solenoid Contactor 48V Continuous
SW180B-8 Albright Single-acting Solenoid Contactor 48V Continuous
£51.62 Excl. VAT
(£61.94 Inc. VAT)
Earn 51 Loyalty Points

No stock
Model
SW180B-8
Bar Code
DNA
Part Number
SW180B-8
Brand
Albright
Colour
Black
Voltage
48V DC
Amperage
150A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Weight
650 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SW180B-8 48Vdc 150 Amps single-acting SPST solenoid contactor with magnetic blowouts, continuous.

  • The SW180B series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as industrial trucks, airport tractors, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number 2180-42.
  • Auxiliary switch kit part number: 2180-796.
  • Mounting bracket available: 2159-47.

Dimensions

  • Height including terminals and coil base Cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

Magnetic Blowouts

 These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW180B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW180B Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW180B has been designed for direct current loads, including motors used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180B is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW180B features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 48V D.C.
Coil Type Continuous
Amps 150 Amps
Coil Resistance (Ohms) 150
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 15.36
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 690g
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
