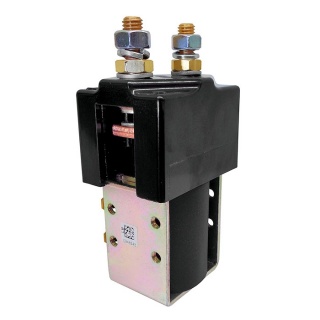

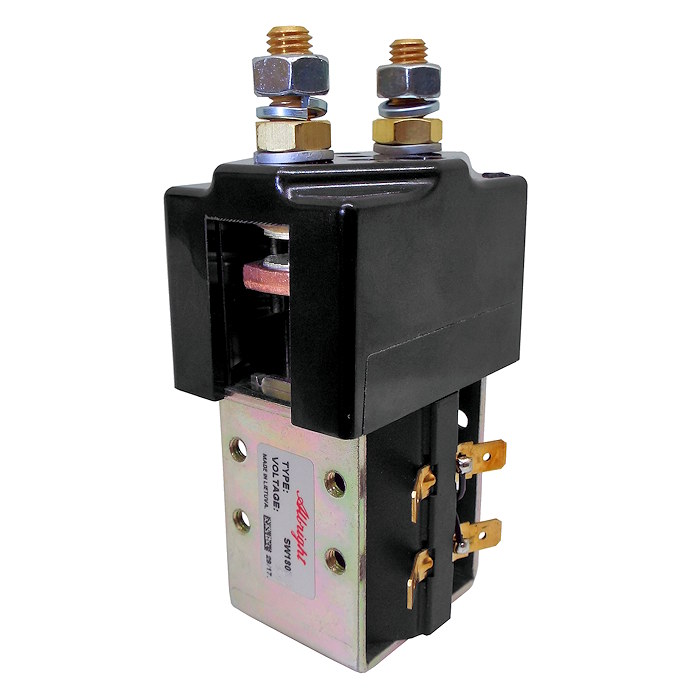

SW180-94L Albright Single Acting Solenoid Contactor 36-48V Intermittent

£46.06  Excl. VAT
  (£55.27 Inc. VAT)


Earn 46 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  650g


Model:  SW180-94L
Part Number:  SW180-94L
Brand:  Albright
Colour:  Black
Voltage:  36-48V DC
Amperage:  150A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SW180-94L Single acting 36 Volts to 48 Volts intermittent contactor with large tips.

  • The SW180 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc, they have double breaking contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number 2180-42A.
  • Auxiliary switch kit part number: 2180-796.
  • Mounting bracket available: 2159-47.
  • Large tips are fitted to this unit.

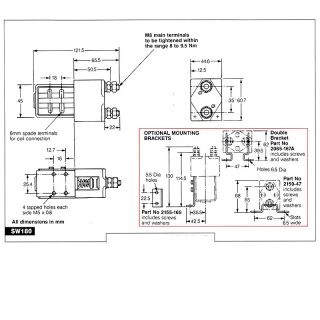

Dimensions

  • Height including terminals and coil base cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Intermittent (Int.) SW180-94L Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW180 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive and Inductive loads.

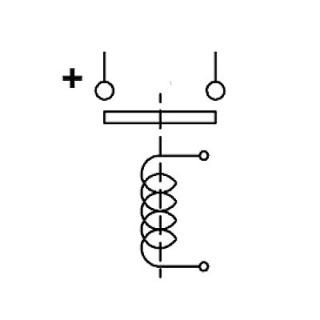

 The SW180 features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW180 SPST NO
Voltage 36 to 48V D.C.
Coil Type Intermittent
Amps 150 amp
Coil Resistance (Ohms) 73
Pull-In Voltage (V) 24.0 Maximum
Drop Out Voltage (V) 9.0 Maximum
Coil Power Dissipation (W) 17.75
Typical Pull-In Time 30ms
Typical Voltage Drop per pole
across New Contacts at 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 690g
Application Interrupted - Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
