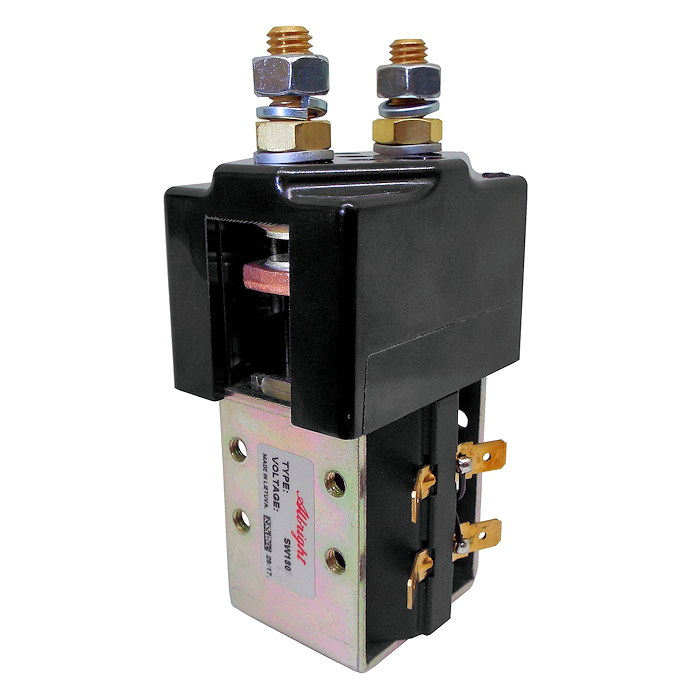

SW180-7 Albright Single Acting Solenoid Contactor 48V Intermittent

£36.90  Excl. VAT
  (£44.28 Inc. VAT)


Earn 36 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  650g


Model:  SW180-7
Part Number:  SW180-7
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  150A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SW180-7 Single acting 48V contactor intermittent.

  • The SW180 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2180-42.
  • Auxiliary switch kit part number: 2180-796.
  • Mounting bracket available: 2159-47.

Dimensions

  • Height including terminals and coil base cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Intermittent (Int.) SW180 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW180 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW180 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeSW180 SPST NO
Voltage48V D.C.
Coil TypeIntermittent
Amps150 amp
Coil Power Dissipation30 - 40 Watts
Typical Pull-In Time30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature-40 to +60℃
Weight640g
ApplicationInterrupted - Uninterrupted
Thermal Current Rating150A
Intermittent Current Rating:
30% Duty275A
40% Duty240A
50% Duty225A
60% Duty200A
70% Duty180A
