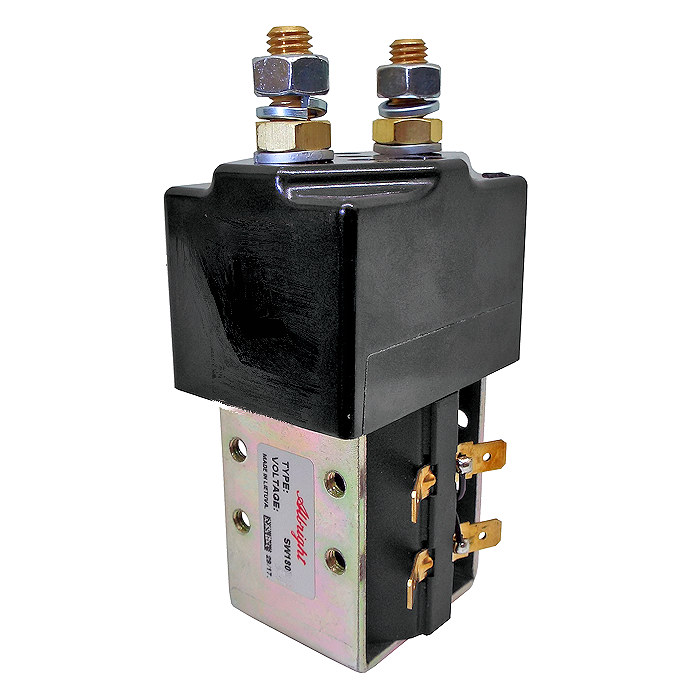

SW180-448L Albright Single-acting Contactor 24V Intermittent - Large Tips

SW180-448L Albright Single-acting Contactor 24V Intermittent - Large Tips
SW180-448L Albright Single-acting Contactor 24V Intermittent - Large Tips
SW180-448L Albright Single-acting Contactor 24V Intermittent - Large Tips
SW180-448L Albright Single-acting Contactor 24V Intermittent - Large Tips
£62.51 Excl. VAT
(£75.01 Inc. VAT)
Earn 62 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks
Model
SW180-448L
Bar Code
DNA
Part Number
SW180-448L
Brand
Albright
Colour
Black
Voltage
24V DC
Amperage
150A
Material
Copper/Silver/Bakelite
Coil type
Intermittent
Weight
650 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of 9 to 12 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SW180-448L single-acting 24Vdc 150 Amps solenoid contactor with large tips and enclosed top cover, intermittent.

  • The SW180 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2180-42A.
  • Auxiliary switch kit part number: 2180-796.
  • Large contact tips fitted.
  • Enclosed top cover fitted.
  • Mounting bracket available: 2159-47.

Dimensions

  • Height including terminals and coil base cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Intermittent (Int.) SW180 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW180 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW180 features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 24V D.C.
Coil Type Intermittent
Amps 150 Amps
Coil Resistance (Ohms) 22
Pull-In Voltage (V) 12.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 26.18
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 640g
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
