SU280-1250T Albright Single-acting 12V 250A Contactor - Continuous

£66.41  Excl. VAT
  (£79.69 Inc. VAT)
 Excl. VAT

Earn 66 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  750 g


Model:  SU280-1250T
Bar Code:  DNA
Part Number:  SU280-1250T
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  250A
Material  Copper/Silver/Bakelite/Steel
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

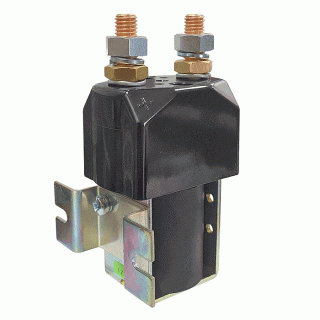

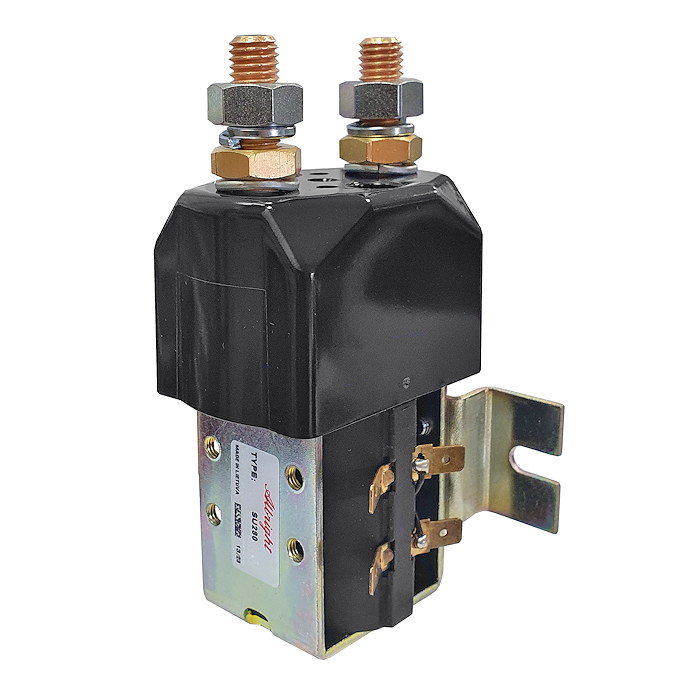

 Albright SU280-1250T single-acting 12Vdc 250 Amps solenoid contactor with textured tips, continuous.

  • The SU280 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Textured tips fitted throughout.
  • 2159-47 bracket fitted on the right-hand side of the coil terminals.

Associated Products

  • 2155-352 Auxiliary switch kit.
  • 2159-47 Mounting bracket.
  • 2155-165 Mounting bracket.
  • 2159-167A Mounting bracket.

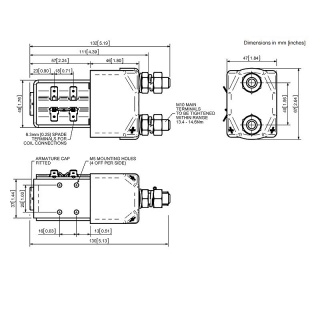

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Continuous (CO.) SU280 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

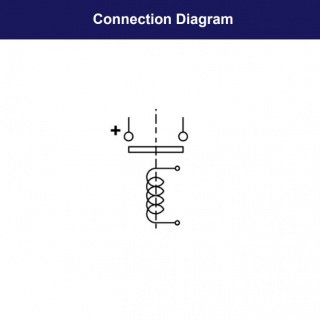

Device Type SPST NO
Voltage 12V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 17
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.5 Maximum
Coil Power Dissipation (W) 8.47
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 640A
40% Duty 395A 555A
50% Duty 355A 495A
60% Duty 325A 450A
70% Duty 300A 420A
