SU280-1001 Albright Single-acting 12V 250A Contactor - Intermittent

£64.03  Excl. VAT
  (£76.84 Inc. VAT)
 Excl. VAT

Earn 64 Loyalty Points
2 in stock


Weight:  750 g





Model:  SU280-1001
Bar Code:  DNA
Part Number:  SU280-1001
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  250A
Material  Copper/Silver/Bakelite/Steel
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

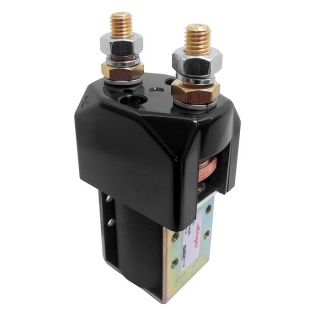

 Albright SU280-1001 single-acting 12Vdc 250 Amps solenoid contactor, intermittent.

  • The SU280 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

Associated Products

  • 2156-184 Contact kit
  • 2155-352 Auxiliary switch kit.
  • 2159-47 Mounting bracket.
  • 2155-165 Mounting bracket.
  • 2159-167A Mounting bracket.

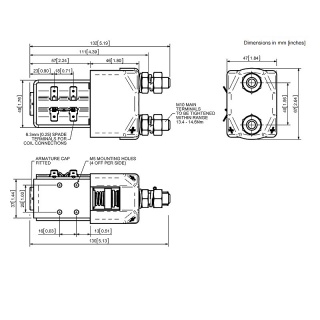

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Intermittent (Int.) SU280 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

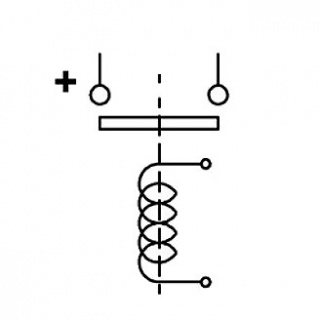

Device Type SPST NO
Voltage 12V D.C.
Coil Type Intermittent
Amps 250 Amps
Coil Resistance (Ohms) 5
Pull-In Voltage (V) 7.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 28.80
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 640A
40% Duty 395A 555A
50% Duty 355A 495A
60% Duty 325A 450A
70% Duty 300A 420A
