SU280-1071P Albright Single-acting 36V 250A Contactor - Intermittent IP66

SU280-1071P Albright Single-acting 36V 250A Contactor - Intermittent IP66
SU280-1071P Albright Single-acting 36V 250A Contactor - Intermittent IP66
SU280-1071P Albright Single-acting 36V 250A Contactor - Intermittent IP66
SU280-1071P Albright Single-acting 36V 250A Contactor - Intermittent IP66
£79.23 Excl. VAT
(£95.08 Inc. VAT)
Earn 79 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SU280-1071P
Bar Code
DNA
Part Number
SU280-1071P
Brand
Albright
Colour
Black
Voltage
36V DC
Amperage
250A
Material
Copper/Silver/Bakelite/Steel
Coil type
Intermittent
Weight
750 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

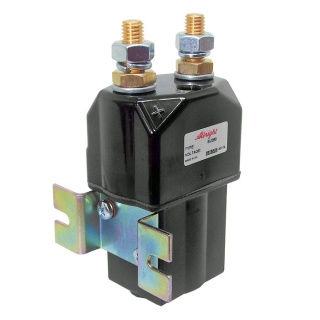

 Albright SU280-1071P single-acting 36Vdc 250 Amps solenoid contactor, protected to IP66, intermittent.

  • The SU280P has been designed for direct current loads, particularly motors as used on electronic vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

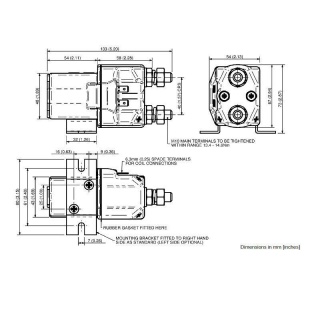

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Intermittent (INT.) SU280P Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU280P offers greater environmental protection (IP66) and is easy to install, with a range of mounting brackets available. To ensure IP66, mounting holes are not accessible on the opposite side of the mounting bracket. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

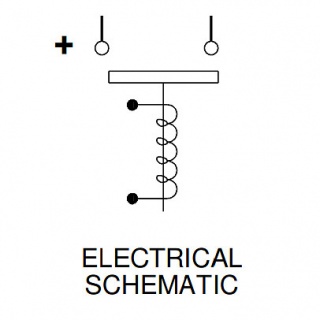

Device Type SPST NO
Voltage 36V D.C.
Coil Type Intermittent
Amps 250 Amps
Coil Resistance (Ohms) 44
Pull-In Voltage (V) 22.0 Maximum
Drop Out Voltage (V) 9.0 Maximum
Coil Power Dissipation (W) 29.45
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 635A
40% Duty 390A 550A
50% Duty 360A 495A
60% Duty 320A 450A
70% Duty 300A 415A
