SU280-1224 Albright Single-acting 48V 250A Contactor - Continuous

£74.03  Excl. VAT
  (£88.84 Inc. VAT)
 Excl. VAT

Earn 74 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  750 g





Model:  SU280-1224
Bar Code:  DNA
Part Number:  SU280-1224
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite/Steel
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

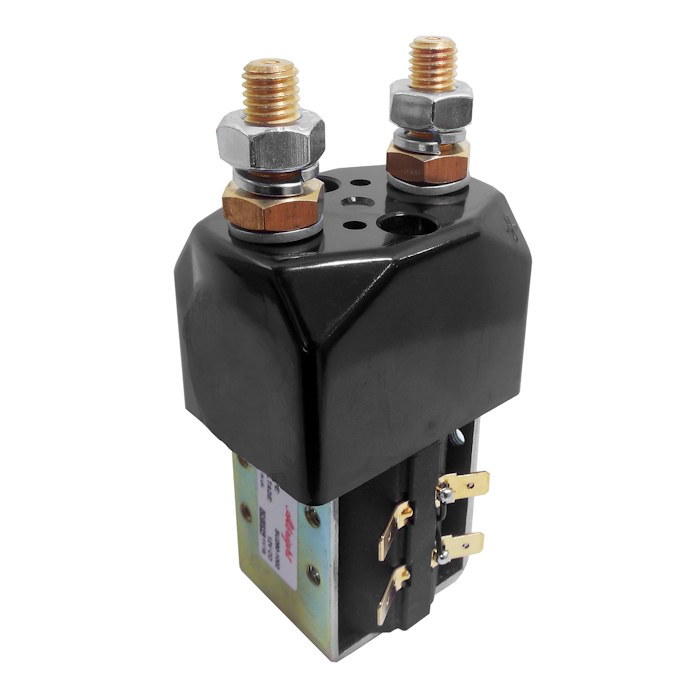

 Albright SU280-1224 single-acting 48Vdc 250 Amps enclosed solenoid contactor, continuous.

  • The SU280 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Enclosed top cover.

Associated Products

  • 2156-184 Contact kit
  • 2155-352 Auxiliary switch kit.
  • 2159-47 Mounting bracket.
  • 2155-165 Mounting bracket.
  • 2159-167A Mounting bracket.

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Continuous (CO.) SU280 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 48V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 150
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 15.36
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 640A
40% Duty 395A 555A
50% Duty 355A 495A
60% Duty 325A 450A
70% Duty 300A 420A
