SU280-1193 Albright Single Acting 12V 250A Contactor - Continuous

£56.09  Excl. VAT
  (£67.31 Inc. VAT)


Earn 56 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  750 g


Model:  SU280-1193
Bar Code:  DNA
Part Number:  SU280-1193
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite/Steel
Coil type:  Continuous

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

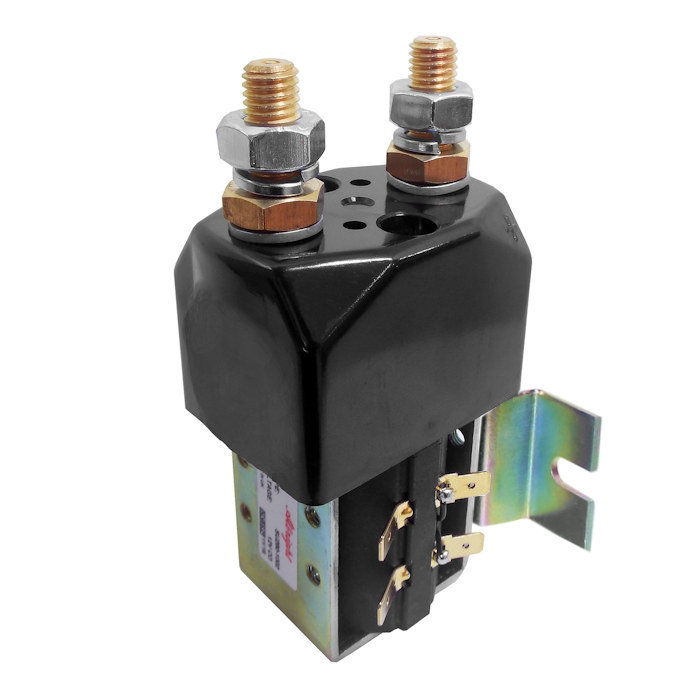

 SU280-1193 single acting 12-volt dc 250 amp continuous solenoid contactor with bracket.

  • The SU280 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as Industrial Trucks, Airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Auxiliary switch kit part number: 2155-352.
  • Top hat mounting bracket 2159-47 fitted on the right-hand side of coil terminals.

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Continuous (CO.) SU280 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SU280 SPST NO
Voltage 12V D.C.
Coil Type Continuous
Amps 250 amp
Coil Resistance (Ohms) 17
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.5 Maximum
Coil Power Dissipation (W) 8.47
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 640A
40% Duty 395A 555A
50% Duty 355A 495A
60% Duty 325A 450A
70% Duty 300A 420A
