SU280-1080P Albright Single-acting 80V 250A Contactor - Continuous IP66

£65.38  Excl. VAT
  (£78.46 Inc. VAT)
 Excl. VAT

Earn 65 Loyalty Points
2 in stock


Weight:  750 g


Model:  SU280-1080P
Bar Code:  DNA
Part Number:  SU280-1080P
Brand:  Albright
Colour  Black
Voltage  80V DC
Amperage  250A
Material  Copper/Silver/Bakelite/Steel
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

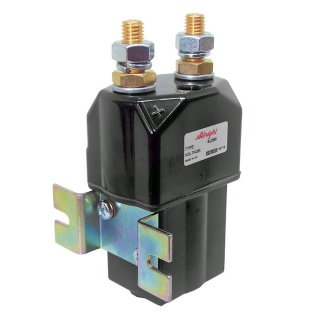

 Albright SU280-1080P single-acting 80 Volts DC 250 Amps solenoid contactor, protected to IP66, continuous.

  • The SU280P has been designed for direct current loads, particularly motors as used on electronic vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

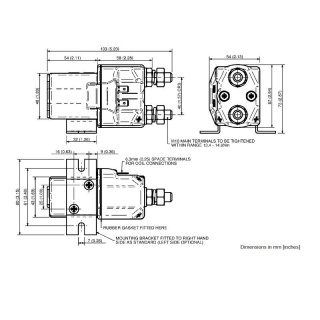

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Continuous (CO.) SU280P Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU280P offers greater environmental protection (IP66) and is easy to install, with a range of mounting brackets available. To ensure IP66, mounting holes are not accessible. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

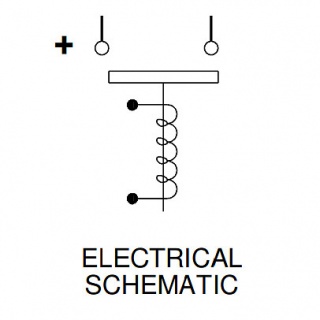

Device Type SPST NO
Voltage 80V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 427
Pull-In Voltage (V) 52.0 Maximum
Drop Out Voltage (V) 20.0 Maximum
Coil Power Dissipation (W) 14.99
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 450A 635A
40% Duty 390A 550A
50% Duty 360A 495A
60% Duty 320A 450A
70% Duty 300A 415A
