Roll of 7-Core Automotive Electric Harness Cable | Re: 0-997-00F

£80.03  Excl. VAT
  (£96.04 Inc. VAT)
RRP:  £89.92  Excl. VAT
Initial Savings:  £9.89
Earn 80 Loyalty Points
Available


Weight:  5.80 kg





Model:  0-997-00F
Bar Code:  5056119169010
Part Number:  0-997-00F
Brand:  Durite
Colour:  Black
Material:  Copper/PVC

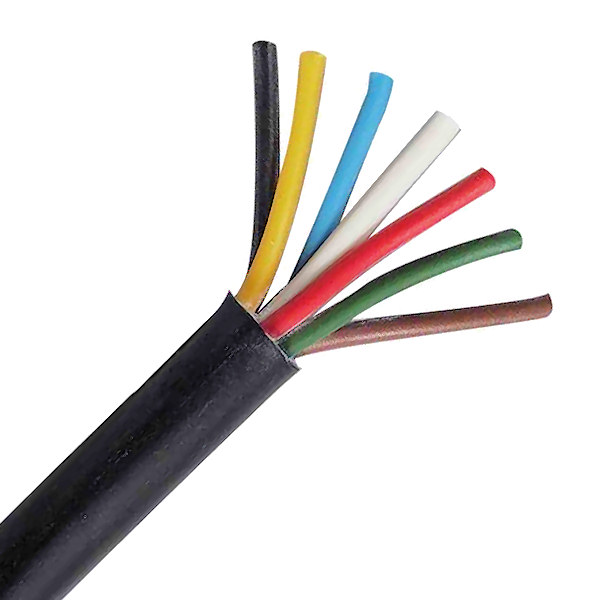

 Durite 30 or 100 Metre rolls of automotive seven multicores Black sheathed electric cable.

  • 7-core electrical cable in a Black sheath.
  • Six 1.00mm² cables, each cable: 14 strands at 0.30mm.
  • One 2.00mm² cable: 28 strands at 0.30mm.
  • Colour-coded cables: Brown, Red, Green, Yellow, Blue, Black and White.
  • Sheath outside diameter: 10.2mm.
  • To BS6862.
  • Roll lengths: 30m or 100m.




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.


Related Products
30m Roll 5-Core Automotive Electric Cable | Re: 0-995-00
30m Roll 5-Core Automotive Electric Cable | Re: 0-995-00

30M 5 multi-core, four 14-0.30mm, 1.00mm² and one 28-0.30mm, 2.00mm² cable, Brown, Red, Green, Yellow and White, to BS6862.


Available
 Reference: 0-995-00F £86.10   £76.63
Roll of 13-Core Automotive Electric Harness Cable | Re: 0-999-63
Roll of 13-Core Automotive Electric Harness Cable | Re: 0-999-63

10M automotive multi-core harness, 13 multi-core, 8 x 30-0.25mm, 5 x 50-0.25mm (thin wall) vehicle cable, to ISO 11446:2004.


Available
 Reference: 0-999-63F From:  £112.96
Roll of 3-Core 16.5A Automotive Electric Harness Cable | Re: 0-994-50F
Roll of 3-Core 16.5A Automotive Electric Harness Cable | Re: 0-994-50F

Durite 1.00mm² 30m roll of 3-core 32-0.20mm, 16.5A Thin Wall cable. Wiring colours: Red, Green, Black and sheathed Black to ISO 6722.


Available
 Reference: 0-994-50F From:  £24.95
Roll of 4-Core 5.75A Automotive Electric Thin Wall Cable | Re: 0-993-00
Roll of 4-Core 5.75A Automotive Electric Thin Wall Cable | Re: 0-993-00

30 Metre roll, 4 multi-core, four 9-0.30mm, 0.65mm², 5.75A automotive cable, Brown, Red, Green and White, sheathed Black, to BS6862.


Available
 Reference: 0-993-00F From:  £42.22
Roll of 4-Core 8.75A Automotive Electric Harness Cable | Re: 0-993-01
Roll of 4-Core 8.75A Automotive Electric Harness Cable | Re: 0-993-01

30 Metre roll, 4 core, four 14-0.30mm, 1.00mm², 8.75A automotive cable, Brown, Red, Green and White, sheathed Black, to BS6862.


Available
 Reference: 0-993-01F From:  £50.11

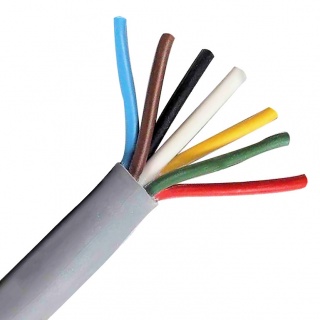

Roll of 7-Core (Thin Wall) Auto Electric Harness Cables | Re: 0-997-65
