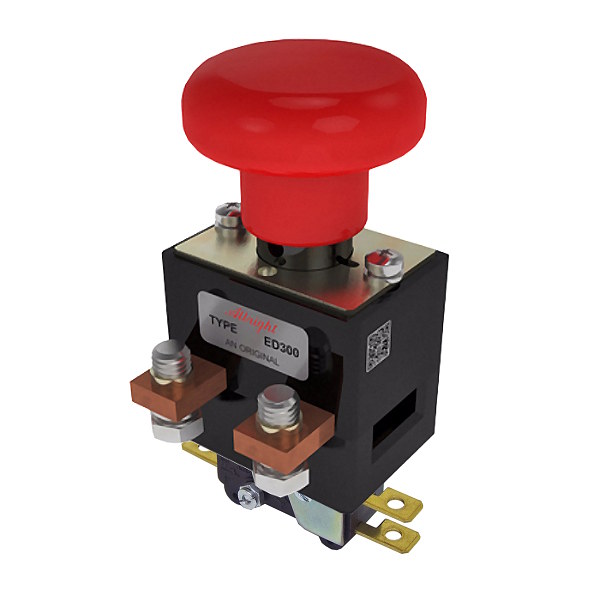

ED300AB-4 Albright Heavy Duty Emergency Stop Switch 300A 96V Maximum

£56.82  Excl. VAT
  (£68.18 Inc. VAT)


Earn 56 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  600g


Model:  ED300AB-4
Part Number:  ED300AB-4
Brand:  Albright
Colour:  Black/Red
Voltage:  12V to 96V DC
Amperage:  300A
Material:  Copper/Silver/Bakelite

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 The Albright ED300AB range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.

  • Rated: 300A, 12V, 24V, 48V, 72V and 96V DC maximum.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • Suitable for voltages up to 96 volt dc, commonly used on 12 volt, 24 volt, 48 volt and 72 volt dc electric vehicle systems.
For a lockable version use ED300LB-3

Magnetic Blowouts

 This unit is fitted with magnetic blowouts, the polarity marked on the contact housing must be observed when connecting the main terminals.

About The Albright ED300AB-4 Stop Switches

 The ED300B is a manually operated device with an over-center spring mechanism which provides a snap action for both opening and closing of the main contacts. The ED300 is easy to install and is secured with supplied M5 Posidrive mounting screws.

 This build version of the ED300 emergency panic switch has an auxiliary microswitch installed in the base of the unit.

 Ensure that the switches are installed in a position where heavy arcs emanating from the switch cannot damage or electrically jump across to adjacent parts. The switch is to be used to rupture current in an emergency or as a no-load isolator.

 A typical comment regarding its big red button appearance is that it is obnoxious, a very apt description, when you need to kill a circuit in an emergency you need the button to be obvious and obnoxious, many OEM's would agree, and will fit the Albright emergency switchgear as standard equipment.

Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application
Device TypeED300AB-4 SPST Emergency Stop Switch
Thermal Current Rating (Ith)300 amp
Intermittent Current Rating30% Duty 550A
40% Duty 475A
50% Duty 425A
60% Duty 385A
70% Duty 360A
Overload Currents
that can be Ruptured
1000A at 96V D.C.
Maximum Recommended
Contact Voltage
96V D.C.
Mechanical MTBF10000 Operations
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature-40 to +60℃
Weight500g
