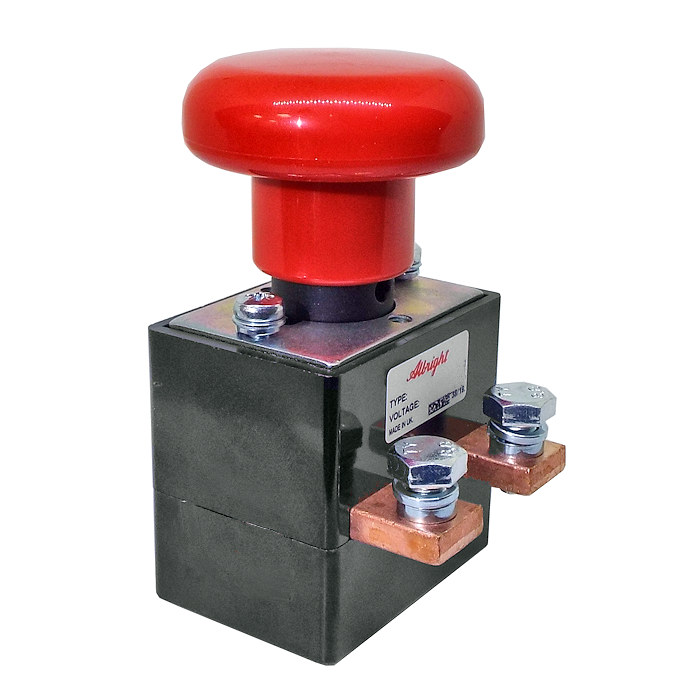

ED300-5 Albright Heavy-duty Emergency Stop Switch 300A 48V Maximum

ED300-5 Albright Heavy-duty Emergency Stop Switch 300A 48V Maximum
ED300-5 Albright Heavy-duty Emergency Stop Switch 300A 48V Maximum
ED300-5 Albright Heavy-duty Emergency Stop Switch 300A 48V Maximum
ED300-5 Albright Heavy-duty Emergency Stop Switch 300A 48V Maximum
£48.03 Excl. VAT
(£57.64 Inc. VAT)
Earn 48 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
ED300-5
Bar Code
DNA
Part Number
ED300-5
Brand
Albright
Colour
Black/Red
Voltage
12V to 48V DC
Amperage
300A
Material
Copper/Silver/Bakelite
Weight
500 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 The Albright ED300 range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.

  • Rated: 300A, 48Vdc maximum.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • Suitable for voltages up to 48 Volts DC, commonly used on 12 Volts, 24 Volts and 48 Volts DC electric vehicle systems.

About The Albright ED300-5 Stop Switches

 The ED300 is a manually operated device with an over-center spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED300 is easy to install and is secured with supplied M5 Posidrive mounting screws.

 This version of the battery isolator has an enclosed top cover to help protect against ingress.

 Ensure that the switches are installed in a position where heavy arcs emanating from the switch cannot damage or electrically jump across to adjacent parts. The switch is to be used to rupture current in an emergency or as a no-load isolator.

 A typical comment regarding its big red button appearance is that it is obnoxious, a very apt description, when you need to kill a circuit in an emergency you need the button to be obvious and obnoxious, many OEM's would agree, and will fit the Albright emergency switchgear as standard equipment.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application
Device Type ED300-5 SPST Emergency Stop Switch
Thermal Current Rating (Ith) 300 Amp
Intermittent Current Rating 30% Duty 550A
40% Duty 475A
50% Duty 425A
60% Duty 385A
70% Duty 360A
Overload Currents
that can be Ruptured
1000A at 48V D.C.
Maximum Recommended
Contact Voltage
48V D.C.
Mechanical MTBF 10000 Operations
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 500g
