DC92-224 Albright 48V DC Motor-reversing Contactor - Continuous

£60.74  Excl. VAT
  (£72.89 Inc. VAT)
 Excl. VAT

Earn 60 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  800 g


Model:  DC92-224
Bar Code:  DNA
Part Number:  DC92-224
Brand:  Albright
Colour  Black
Voltage  48V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

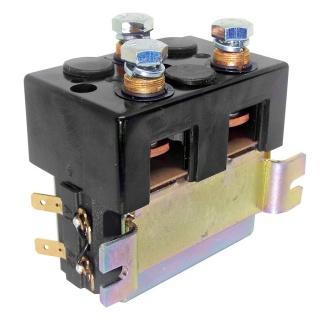

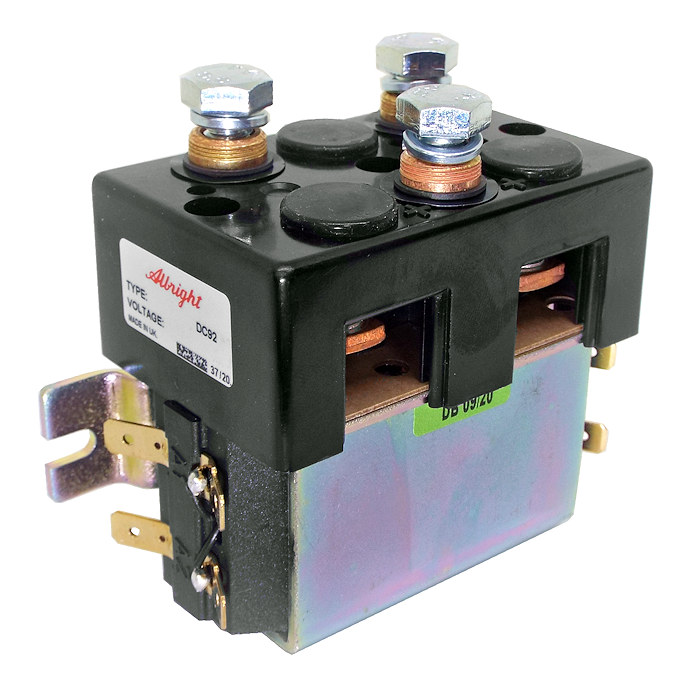

 Albright 48 Volts DC motor reversing solenoid contactor, continuous use with integral mounting bracket.

  • The DC92 has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks.
  • Developed for both interrupted and uninterrupted loads, the DC92 is suitable for switching Resistive, Capacitive and Inductive loads.
  • Repair kit - top cover only part number: 2070-360DN
  • Integral mounting bracket version.

About The DC92-224 Motor Reversing Solenoid

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The DC92 features double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC92 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

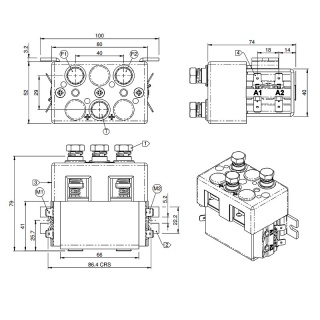

The DC92 is supplied with an integral mounting bracket and there are no tapped holes on the outer case. Please refer to the technical drawings for the bracket fixing points. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeDC92-224 Monoblock NO
Voltage48V D.C.
Coil TypeContinuous
Amps100A
Coil Resistance (Ohms)212
Pull-In Voltage (V)32.00 Maximum
Drop Out Voltage (V)12.00 Maximum
Coil Power Dissipation (W)10.87
Typical Pull-In Time20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature-40 to +60℃
Guideline Weight800g
ApplicationInterruptedUninterrupted
Thermal Current Rating100A125A
Intermittent Current Rating:
30% Duty185A230A
40% Duty160A200A
50% Duty140A175A
60% Duty130A160A
70% Duty120A150A
