DC88B-122 Albright 48V DC Motor-reversing Solenoid Contactor Intermittent
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 1.04 kg
Model: DC88B-122
Bar Code: DNA
Part Number: DC88B-122
Brand: Albright
Colour Black
Voltage 48V DC
Amperage 100A
Material Copper/Silver/Bakelite
Coil type Intermittent
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

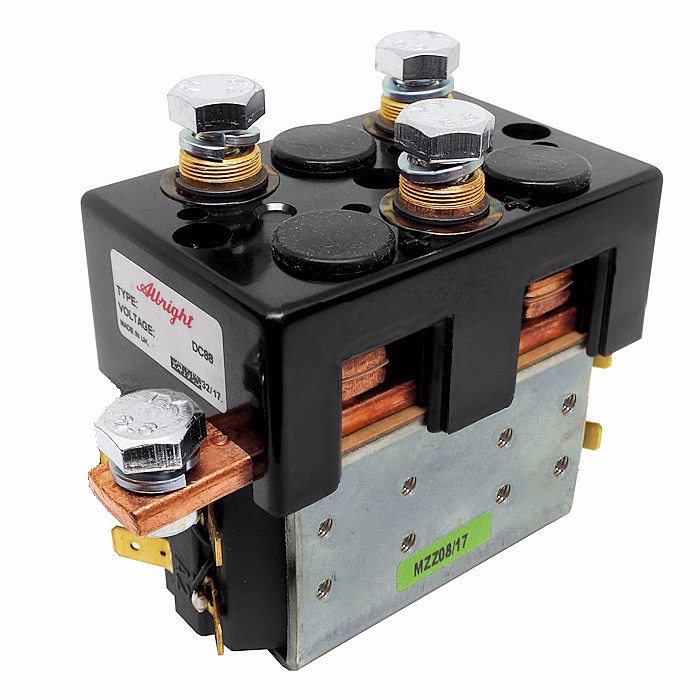

Albright 48 Volts DC motor reversing solenoid contactor, intermittent. The 'B' denotes the caps are fitted with magnetic blow-outs.
- The DC88B-122 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
- They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
- The DC88B is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.
- Magnetic blow-outs: used to assist breaking of arcs associated with high voltage.
Associated Products
- 2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
- 2072-447 Pair of Albright DC88 Solenoid Mounting Brackets
Replacement Component Part Numbers
- 2070-360C: Top cover with magnets and stud contacts.
- 2070-14J: Moving contact.
- 2070-326: Long bar fixed contact.
About The DC88B-122 Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

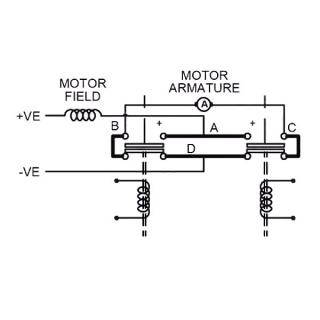

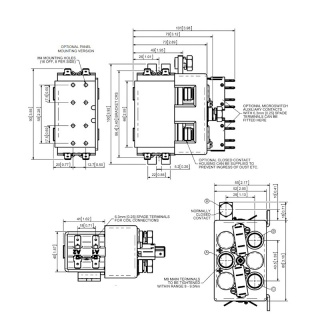

The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | DC88B Monoblock SPDT NO |
| Voltage | 48V D.C. |
| Coil Type | Intermittent |
| Amps | 100A |
| Coil Resistance (Ohms) | 120 |
| Pull-In Voltage (V) | 24.0 Maximum |
| Drop Out Voltage (V) | 12.0 Maximum |
| Coil Power Dissipation (W) | 19.20 |
| Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | Normally Open: Less than 40mV
Normally Closed: Less than 50mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Guideline Weight | 1.04kg |
| Application | Uninterrupted |
| Thermal Current Rating | 100A |
| Intermittent Current Rating: |
| 30% Duty | 185A |
| 40% Duty | 160A |
| 50% Duty | 140A |
| 60% Duty | 130A |
| 70% Duty | 120A |
