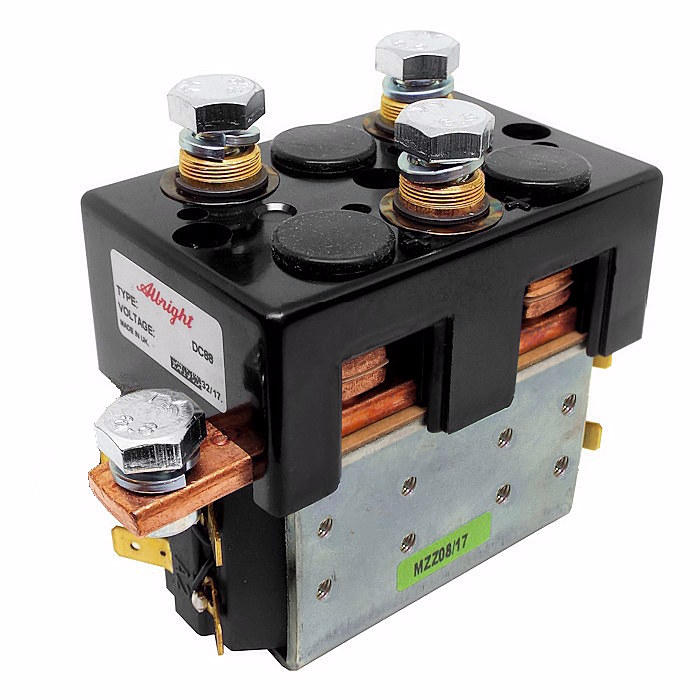

DC88B-111 Albright 24V DC Motor Reversing Solenoid Contactor Intermittent

£68.98  Excl. VAT
  (£82.78 Inc. VAT)


Earn 68 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  1.04kg


Model:  DC88B-111
Part Number:  DC88B-111
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright 24 volt dc motor reversing solenoid contactor, intermittent. The 'B' denotes the caps are fitted with magnetic blow-outs.

  • The DC88B-111 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88B is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.
  • Magnetic blow-outs: used to assist breaking of arcs associated with high voltage.

Associated Products

  • 2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
  • 2072-447 Pair of Albright DC88 Solenoid Mounting Brackets

Replacement Component Part Numbers

  • 2070-360C: Top cover with magnets and stud contacts.
  • 2070-14J: Moving contact.
  • 2070-326: Long bar fixed contact.

About the DC88B-111 Motor Reversing Solenoid

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type DC88B Monoblock SPDT NO
Voltage 24V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.5 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop per pole
across New Contacts at 100A
Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Interrupted - Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
