DC66-34P Albright 48V DC Motor Reversing Solenoid Continuous 80A IP66

£47.50  Excl. VAT
  (£57.00 Inc. VAT)
 Excl. VAT

Earn 47 Loyalty Points
2 in stock


Weight:  500 g


Model:  DC66-34P
Bar Code:  DNA
Part Number:  DC66-34P
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

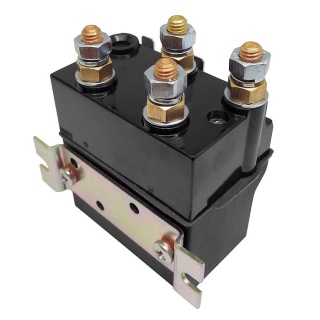

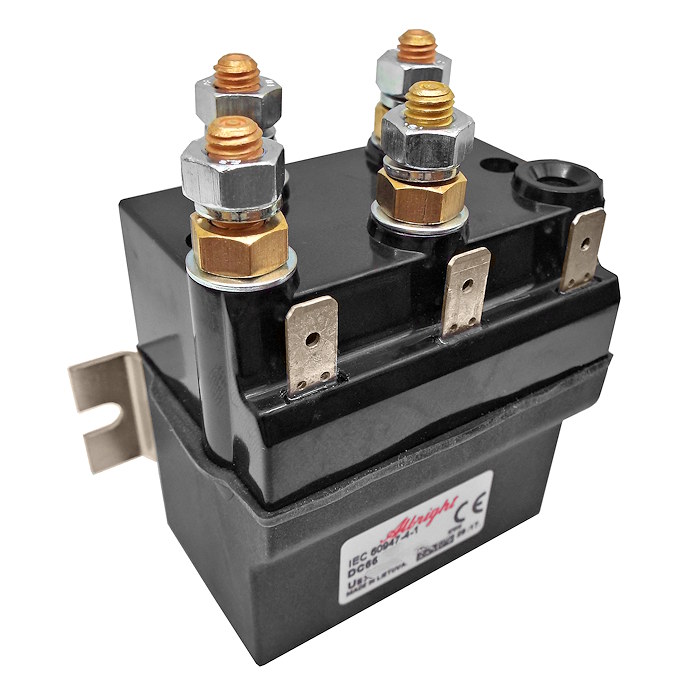

 Albright DC66-34P 48Vdc 80 Amps motor-reversing switch solenoid, continuous coil.

  • The DC66P range of compact 80A contactors follows the established design of the SW60 mono-block contactors, which are configured specifically for motor reversing.
  • The DC66P is ideally suitable for use with small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
  • These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination, they can, therefore, be used in environments that require protection to IP66.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, silver alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

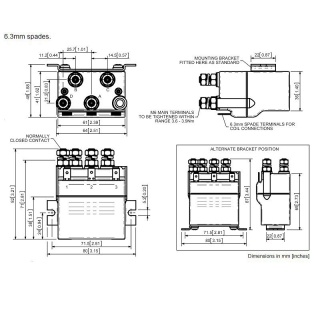

Dimensions

  • Height including terminals and coil base cap: 87.9mm.
  • Width: 63.9mm.
  • Depth (including bracket): 47.15mm.

Additional Information

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

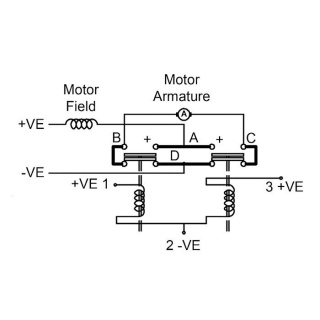

 The main contact circuit has a built-in fail-safe, so that if both coils are energised simultaneously the contact arrangement is an open circuit. The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPDT NO
Voltage 48V D.C.
Coil Type Continuous
Amps 80A
Coil Resistance (Ohms) 410
Pull-In Voltage (V) 32.0 Max.
Drop Out Voltage (V) 12.0 Max.
Coil Power Dissipation (W) 5.62
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
40mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Weight 460g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
