DC66-11P Albright 12V DC Motor Reversing Solenoid Continuous 80A IP66
Weight: 500 g
Bar Code: DNA
Part Number: DC66-11P
Voltage: 12V DC
Coil type: Continuous
Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

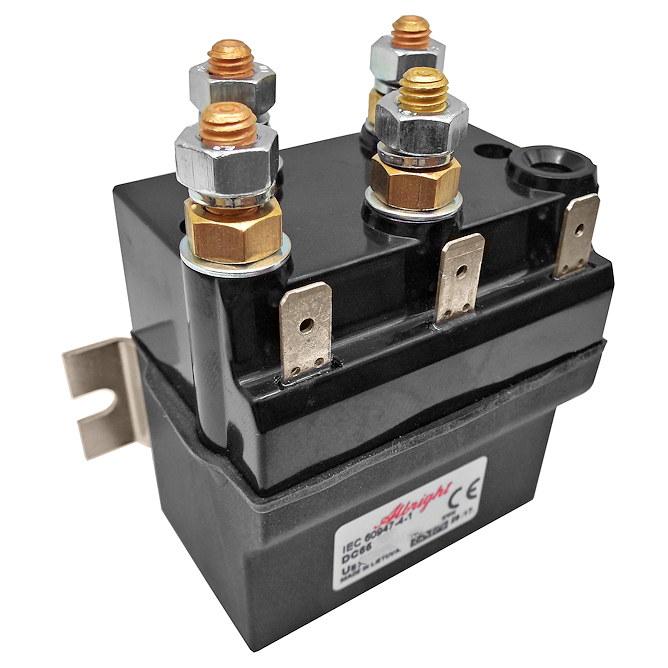

Albright DC66-11P 12 Volts DC motor-reversing switch solenoid.
- The DC66P range of compact 80A contactors follows the established design of the SW60 mono-block contactors, which are configured specifically for motor reversing.
- The DC66P is ideally suitable for use with small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
- These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination, they can, therefore, be used in environments that require protection to IP66.
- All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, silver alloy contacts and class H (180℃) winding wire for the coils.
- Repair kit: not available on this unit.
- Height including terminals and coil base cap: 87.9mm.
- Width: 63.9mm.
- Depth (including bracket): 47.15mm.
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The main contact circuit has a built-in fail-safe, so that if both coils are energised simultaneously the contact arrangement is an open circuit. The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.
|Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance). |
|Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||DC66P SPDT NO |
|Voltage ||12V D.C. |
|Coil Type ||Continuous |
|Amps ||80A |
|Coil Resistance (Ohms) ||21 |
|Pull-In Voltage (V) ||8.0 Maximum |
|Drop Out Voltage (V) ||3.0 Maximum |
|Coil Power Dissipation (W) ||6.86 |
|Typical Pull-In Time ||15ms |
|Typical Voltage Drop Per Pole |
across New Contacts at 80A
|Operating Ambient Temperature ||-40 to +60℃ |
|Protection ||IP66 |
|Weight ||460g |
|Application ||Interrupted - Uninterrupted |
|Thermal Current Rating ||80A |
|Intermittent Current Rating: |
|30% Duty ||145A |
|40% Duty ||125A |
|50% Duty ||115A |
|60% Duty ||105A |
|70% Duty ||95A |
