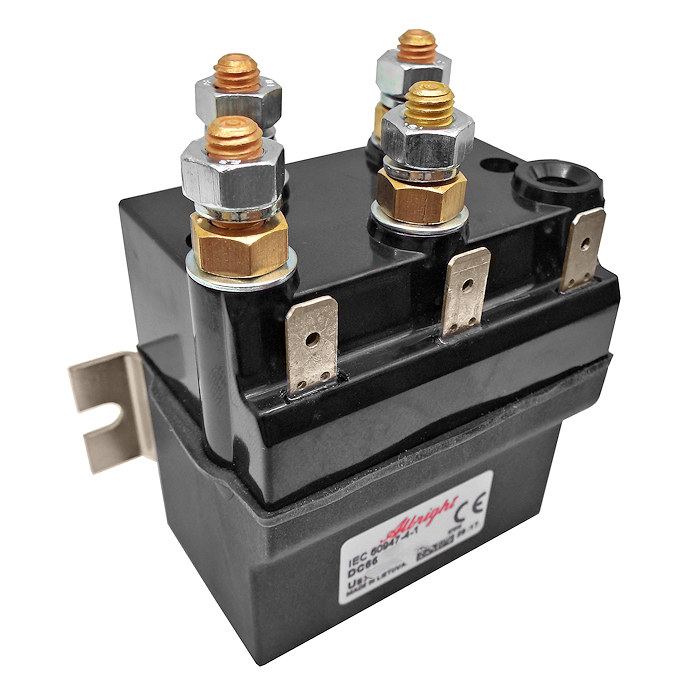

DC66-140P Albright 12V DC Reversing Solenoid Very Intermittent 80A IP66
£52.05 Excl. VAT (£62.46 Inc. VAT)
Excl. VAT
Earn 52 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 500 g
Model: DC66-140P
Bar Code: DNA
Part Number: DC66-140P
Brand: Albright
Colour: Black
Voltage: 12V DC
Amperage: 80A
Material: Copper/Silver/Bakelite
Coil type: Very Intermittent
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |
Albright DC66-140P 12Vdc 80 Amps motor-reversing switch solenoid, very intermittent coil.
- Very intermittent coil version, maximum 25% duty.
- The DC66P range of compact 80A contactors follows the established design of the SW60 mono-block contactors, which are configured specifically for motor reversing.
- The DC66P is ideal for small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
- These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contaminations; they can, therefore, be used in environments that require protection to IP66.
- All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180° C) winding wire for the coils.
- Repair kit: not available on this unit.
Dimensions
- Height, including terminals and coil base cap: 87.9mm.
- Width: 63.9mm.
- Depth (including bracket): 47.15mm.
Additional Information
Very Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break much quicker than continuous solenoids and are not recommended for prolonged contact periods.
The main contact circuit has a built-in fail-safe so that if both coils are energised simultaneously, the contact arrangement is an open circuit. The DC66P has double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals, and coil connections are by means of 6.3mm spades.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | SP - DT - NO |
| Voltage | 12V HO D.C. |
| Coil Type | Very Intermittent |
| Amps | 80A. |
| Coil Resistance (Ohms) | 7 |
| Pull-In Voltage (V) | 8.0 Max. |
| Drop Out Voltage (V) | 3.0 Max. |
| Coil Power Dissipation (W) | 21.18 |
| Typical Pull-In Time | 15ms |
Typical Voltage Drop Per Pole
across New Contacts at 80A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Protection | IP66 |
| Weight | 460g |
| Application | Uninterrupted |
| Thermal Current Rating | 80A |
| Intermittent Current Rating: |
| 30% Duty | 145A |
| 40% Duty | 125A |
| 50% Duty | 115A |
| 60% Duty | 105A |
| 70% Duty | 95A |
