DC66-1P Albright 12V DC Reversing Solenoid Very Intermittent 80A IP66

£39.92  Excl. VAT
  (£47.90 Inc. VAT)


Earn 39 Loyalty Points
No stock
Back ordering available.

Weight:  500g


Model:  DC66-1P
Part Number:  DC66-1P
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Very Intermittent

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

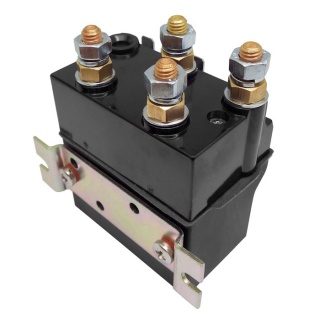

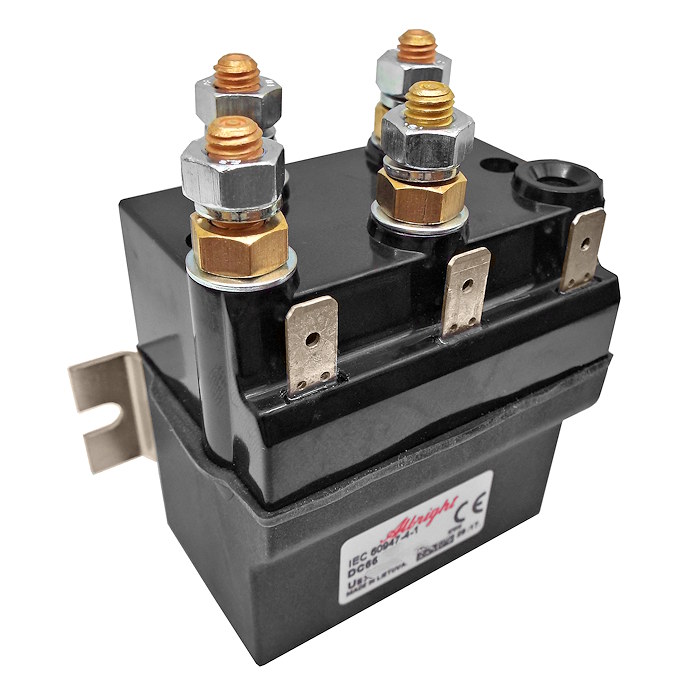

 Albright DC66-1P 12 volt dc motor reversing switch solenoid.

  • Very intermittent coil version, maximum 25% duty.
  • The DC66P range of compact 80A contactors follow the established design of the SW60 mono-block contactors, which are configured specifically for motor reversing.
  • The DC66P is ideally suitable for use with small battery powered winches, vehicle mounted cranes, small electric vehicles, etc.
  • These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contaminations, they can therefore be used in environments which require protection to IP66.
  • All the contactors are manufactured to a very high standard and employ best quality materials: phenolic contact housings, silver alloy contacts and class H (180° C) winding wire for the coils.
  • Repair kit: not available on this unit.

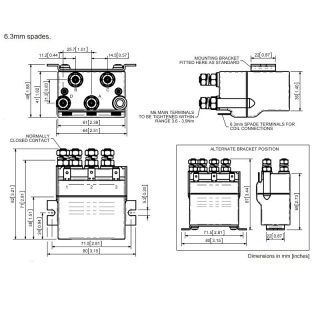

Dimensions

  • Height including terminals and coil base cap: 87.9mm.
  • Width: 63.9mm.
  • Depth (including bracket): 47.15mm.

Additional Information

 Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break much quicker than continuous solenoids and are not recommended for prolonged contact periods.

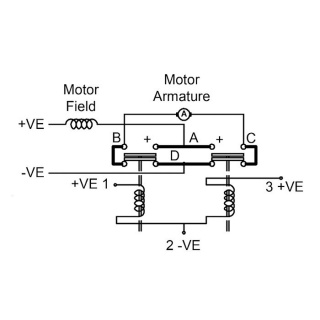

 The main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type DC66P Monoblock SPDT NO
Voltage 12V D.C.
Coil Type Very Intermittent
Amps 80A.
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 20.57
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
40mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Weight 460g
Application Interrupted - Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
