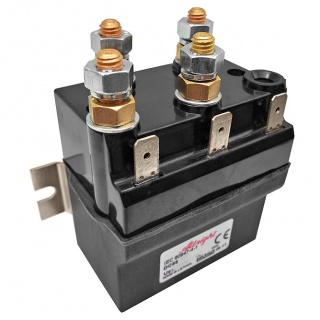

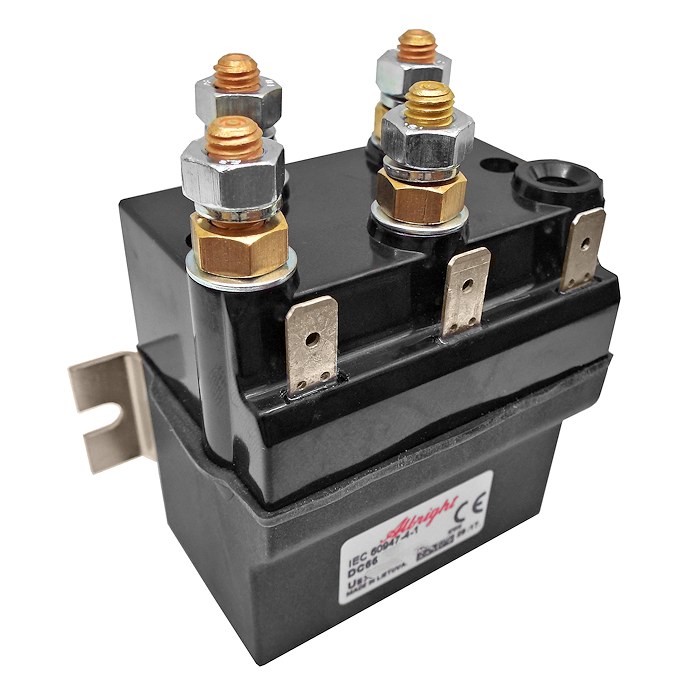

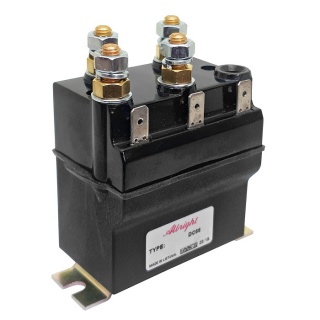

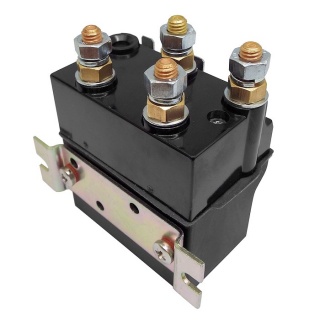

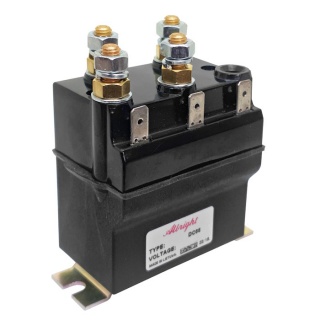

Albright DC66-31P 24Vdc 80 Amps motor-reversing switch solenoid, very intermittent coil.
- The DC66P range of compact 80A contactors follows the established design of the SW60 mono-block contactors, which are configured specifically for motor reversing.
- The DC66P is ideal for small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
- These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination; they can, therefore, be used in environments that require protection to IP66.
- All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
- Repair kits are not available for this unit.
Dimensions

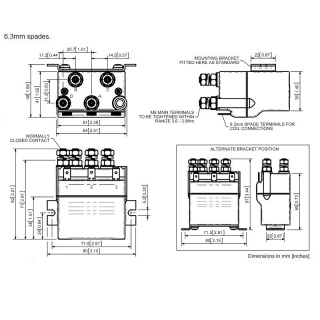

- Height, including terminals and coil base cap: 87.9mm.
- Width: 63.9mm.
- Depth (including bracket): 47.15mm.
Additional Information
Very Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. This very intermittent solenoid is designed for a 10% duty cycle.

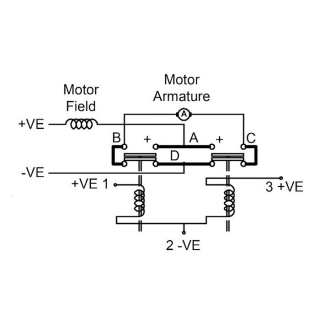

The main contact circuit has a built-in fail-safe so that if both coils are energised simultaneously, the contact arrangement is an open circuit. The DC66P has double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals, and coil connections are by means of 6.3mm spades.
Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
Device Type | NO - SP - DT |
Voltage | 24V D.C. |
Coil Type | Very Intermittent |
Amps | 80A. |
Coil Resistance (Ohms) | 21.0 |
Pull-In Voltage (V) | 14.5 Max. |
Drop Out Voltage (V) | 6.0 Max. |
Coil Power Dissipation (W) | 27.43 |
Typical Pull-In Time | 15ms |
Typical Voltage Drop Per Pole across New Contacts at 80A | 40mV |
Operating Ambient Temperature | -40 to +60℃ |
Protection | IP66 |
Weight | 460g |
Application | Uninterrupted |
Thermal Current Rating | 80A |
Intermittent Current Rating: |
30% Duty | 145A |
40% Duty | 125A |
50% Duty | 115A |
60% Duty | 105A |
70% Duty | 95A |
