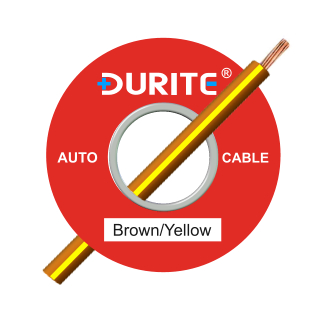

Durite 27.5A Brown with a Yellow tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 3mm² (12AWG) Brown/Yellow (Brown cable, Yellow stripe).
- 27.5 Amps single-core automotive cable and vehicle wiring.
- 44 copper strands at 0.30mm.
- Outside diameter: 4.2mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-945-38 3.00mm² Brown/Yellow PVC Electric Cable
Arc Components Limited presents the 0-945-38, Durite's light to medium-duty 27.5A Brown with a Yellow tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low to medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 3.0mm² (12 AWG) and features 44 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 27.5 Amps.
The Durite 0-945-38 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core standard automotive wiring |
|Current Rating ||27.5 Amps |
|Insulation Colour ||Brown with a Yellow tracer stripe |
|Wire ||44/0.30mm copper |
|Cross-section ||3.00mm² (12 AWG) |
|Voltage ||For 12 and 24 Volts DC systems (100 Volts DC Max.) |
|Resistance ||6.0mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||4.2mm |
|Temperature ||Minus 30 to +70℃ |
|Length of Cable ||50 Metres |
|Approvals ||BS 6862-1:1971 |
|Weight ||2.12Kg |
