0-945-05 50m x 3.00mm˛ Red 27.5A Auto Single Core Cable

£37.98  Excl. VAT
  (£45.58 Inc. VAT)
RRP:  £43.38
Savings before Cart:  £5.40
Earn 37 Loyalty Points
Available


Weight:  2.07 kg


Model:  0-945-05
Bar Code:  5056119133202
Part Number:  0-945-05
Brand:  Durite
Colour:  Red
Amperage:  27.5A
Material:  Copper/PVC

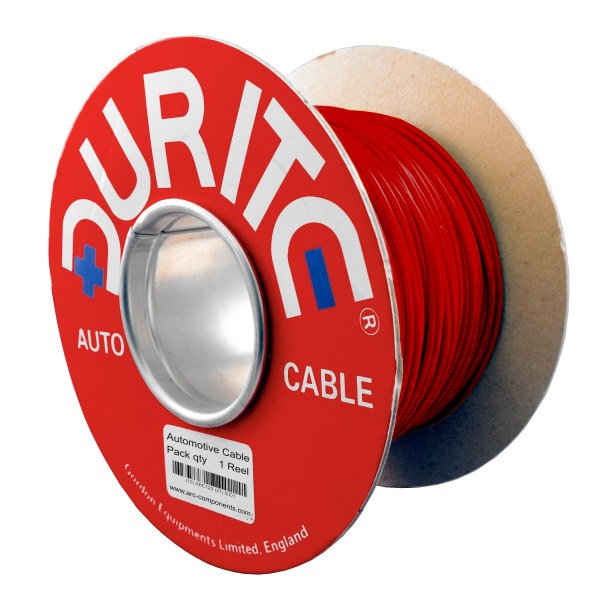

 Single core PVC standard automotive cable.

  • Reel length: 50m.
  • 3.00mm² red.
  • 27.5A automotive single core electric cable.

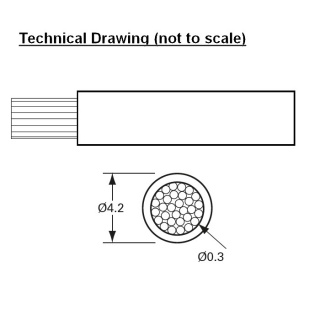

  • 44 strand 0.30mm.
  • Outside diameter: 4.2mm.
  • To BS6862.

About the 3mm² Red Standard Electric Cable

 50 Metre roll of medium duty 27.5A red automotive cable. Used for medium current loads, the 3.0mm² is ideal for vehicle wiring requiring a maximum load of 27.5A continuous. Used as a positive conductor on auto electrical equipment and wiring looms.
