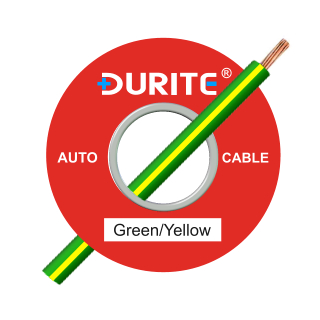

0-942-48 50m x 1.00mm² Green-Yellow Auto Single-core Cable

£14.86  Excl. VAT
  (£17.83 Inc. VAT)
RRP:  £16.70  Excl. VAT
Initial Savings:  £1.84
Earn 14 Loyalty Points
Available


Weight:  780 g





Model:  0-942-48
Bar Code:  5056119132823
Part Number:  0-942-48
Brand:  Durite
Colour:  Green/Yellow
Voltage:  12V/24V DC
Amperage:  8.75A
Material:  Copper/PVC


 Durite 8.75A Green with a Yellow tracer (Ground/Earth) standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Green/Yellow (Green cable, Yellow stripe) Ground or Earth cable.
  • 8.75 Amps single-core automotive cable and vehicle wiring.
  • 14 copper strands at 0.30mm.
  • Outside diameter: 2.7mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-942-48 1.00mm² Green/Yellow PVC Electric Cable

 Arc Components Limited presents the 0-942-48, Durite's light-duty 8.75A Green with a Yellow tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps.

 The Durite 0-942-48 is commonly used as a Ground (Earth) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 8.75 Amps
Insulation Colour Green with a Yellow tracer stripe (Earth/Ground)
Wire 14/0.30mm copper
Cross-section 1.00mm² (17 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 18.9mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   2.7mm
Temperature Minus 30 to +70℃
Length of Cable 50 Metres
Approvals BS 6862-1:1971
Weight 0.82Kg
