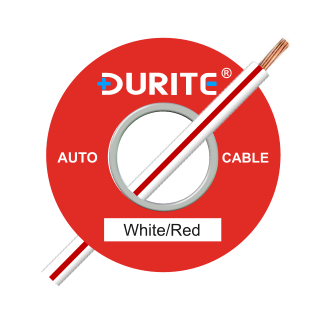

0-932-75 100m x 1.00mm˛ White-Red 16.5A Auto Single Core Cable
Weight: 1.28 kg
Bar Code: 5056119131925
Part Number: 0-932-75
Durite single-core 1mm² thin wall automotive white with a red tracer PVC sheathed electric cable.
- Length: 100m.
- 1.00mm² white-red (white cable, red stripe).
- 16.5A automotive single core cable.
- 32 Strand 0.20mm.
- Outside diameter: 2.1mm.
- To ISO 06722-4.
About the 1mm² White and Red Thin Wall Electric Cable
100-metre rolls of light-duty 16.5A white with a red tracer line auto electrical thin wall cable, used for light current loads. The thin-wall configuration increases current load capabilities to a maximum of 16.5 amps continuous. With a reduced but harder PVC coating, thin-wall cabling is modern by design and adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cable is manufactured to ISO 6722-4 industry standards, reduces the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
|Type ||Single-core thin wall cable |
|Current Rating ||16.5 amp |
|Insulation colour ||White with a red tracer line |
|Wire ||32/0.20mm copper |
|Cross-section ||1.00mm² |
|Voltage ||60 Volts DC maximum |
|Resistance ||18.5mΩ/m at 20℃ |
|Insulation ||Hard grade PVC to BS6746 Type 5. |
|Overall diameter ||2.1mm |
|Temperature ||Minus 40 to +105℃ |
|Length of cable ||100 Metres |
|Approvals ||ISO6722/4 |
|Weight ||1.27Kg |
