0-834-10 Pack of 10 Universal Inline Diodes 10A 50V DC
Weight: 60 g
Bar Code: 5056119130300
Part Number: 0-834-10
Voltage 50V DC

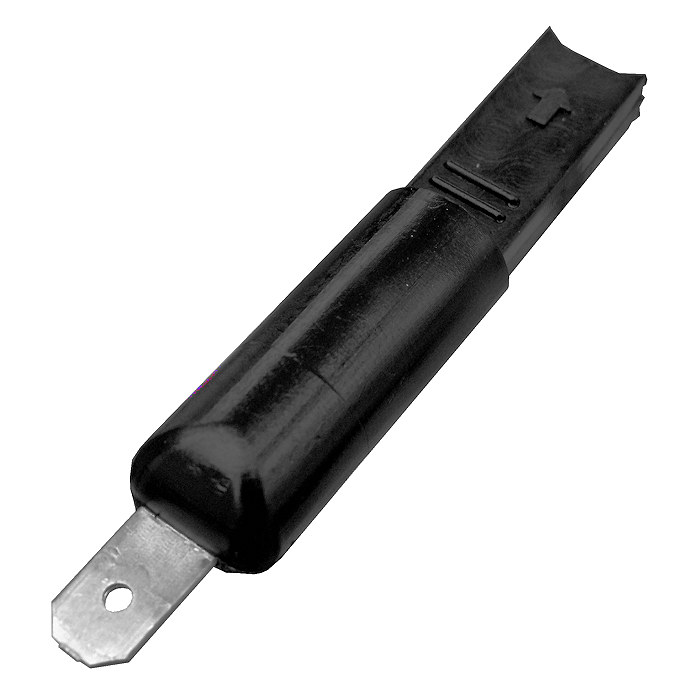

Durite inline tracking diodes with Lucar type 6.30mm blade or spade terminal connection.
- 10A, 50Vdc maximum.
- Allows blocking diode to be added to a circuit via 6.3mm Lucar terminals.
- Terminals: 6.3mm male (Negative), 6.3mm female (Positive).
- Pack quantity: 10 pieces.
|Type ||Inline silicon diode |
|Voltage ||Max reverse voltage 50 volts |
Max forward voltage 0.9 volts
|Current ||Max forward current 10A |
Max leakage current Less than 25µA
|Termination ||Anode 6.3mm blade terminal |
Cathode 6.3mm female push-on terminal
|Operating Junction |
|-50℃ to +175℃ |
(at 25℃ ambient temperature)
|Case ||Nylon 6.6 |
|Dimensions ||Length: 60.8mm, Width: 11.5mm. |
|Colour ||Black |
|Weight ||5g |
