0-452-62 Pack of 10 Soft PVC Cable Blanking Grommets - 32mm Diameter Hole
Weight: 50 g
Bar Code: 5056119149302
Part Number: 0-452-62
10 soft PVC blanking plugs for unused grommet holes.
- Used for blanking holes in vehicle chassis, junction boxes and panels to the listed sizes.
- Best fit: 32mm panel hole.
- Pack quantity: 10 pieces per pack.
- Material: soft PVC.

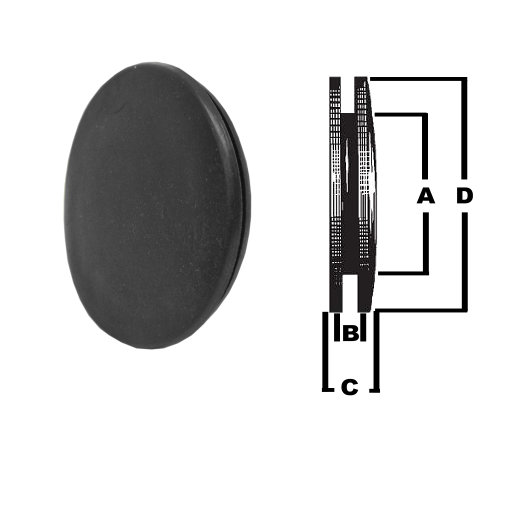

Sizes as Image
- A: 31.70mm
- B: 1.60mm
- C: 7.20mm
- D: 38.10mm
About the 32mm Panel Hole Diameter Blanking Plugs
Ten 32.00mm panel hole diameter blanking plugs for replacing grommets or blanking off holes in a junction box. Using the letters on the picture, the optimum value or holes size should be halfway between the A and D measurement.
To aid the choice of the correct size blanking plug, after measuring the hole identify the size falling between A and D, if your hole size is too close to A, the plug push-fit would be difficult to seat, too close to D and the plugs could push through or fall out.
Rather than leave a junction box or panel open to the elements, the plugs block old redundant cable entry holes in panels to stop dirt, splashes and dust ingress, also used on enclosed boxed spaces, cowling and control panels.
