0-447-62 Pack of 10 Soft PVC Cable Wiring Grommets - 32mm Diameter Hole
Weight: 60 g
Bar Code: 5056119149210
Part Number: 0-447-62
Pack of 10, soft PVC wiring grommets.
- Used for cable entry holes in bulkheads and panels to the listed sizes.
- Best fit: 32mm panel hole.
- Pack quantity: 10 pieces per pack.
- Material: soft PVC.

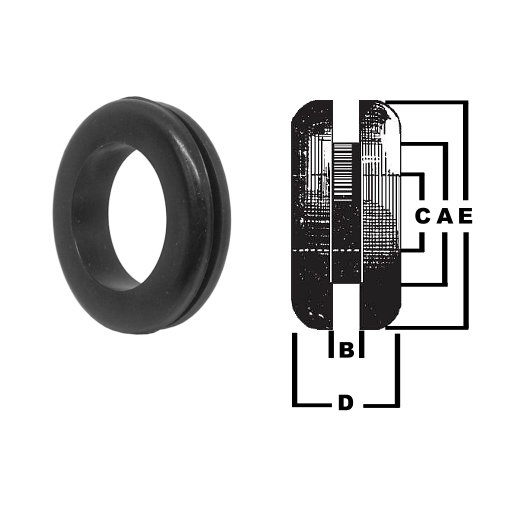

Sizes as Image
- A: 31.70mm
- B: 1.60mm
- C: 24.00mm
- D: 8.00mm
- E: 38.10mm
About the 32mm Diameter Hole Cable and Wiring Grommets
Pack of ten 32.00mm diameter hole wiring or cable grommets. Using the letters on the picture, the ‘best fit’ value for the clearance holes diameter should be halfway between the A and E measurement.
To aid the choice of the correct size wire or cable grommet; after the cable size (C), the next important factor is A and E, if your hole size is too close to A, the grommet push fit would be difficult to seat, too close to E and the grommet could pull free with the movement of the cable.
