0-327-42 Nylon Unsealed T-Piece Connector 10NW

£1.10  Excl. VAT
  (£1.32 Inc. VAT)
RRP:  £1.24  Excl. VAT
Initial Savings:  £0.14
Earn 1 Loyalty Points
Available


Weight:  10 g


Model:  0-327-42
Bar Code:  5056119107814
Part Number:  0-327-42
Brand:  Durite
Size  10NW
Colour  Black
Material  Nylon

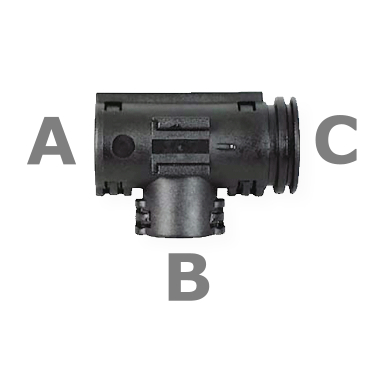

 Nylon unsealed NW10 automotive T-piece connector. Black nylon unsealed T-piece connector, for fitting onto unsplit tubing to create an electric cable tube junction; sizes A, B and C are clearly marked on the product image.

  • Used with unsplit tubing.
  • Unsealed.
  • Black nylon.
  • Pack Quantity: 1 piece.

Gland Size

  • A: 10NW
  • B: 10NW
  • C: 10NW

About The Auto Cable Tubing T-Pieces

 10NW (nominal width 10mm) auto electrical T-piece connector, used with unsplit tube conduit to navigate around components and mechanical parts when creating an electrical cable loom run around a vehicle chassis. T-piece connectors make a junction spur in the wiring run, where same sized (in the case of this unit) tubes can be joined into the conduit.

Specifications

Type ‘T’ piece connector
Port A Nominal Width 10.0mm
Port B Nominal Width 10.0mm
Port C Nominal Width 10.0mm
Height (h) 28.8mm
Length (l) 42.4mm
Case type B
Closure Snap together
Material Nylon (Polyamide 66)
Temperature range Minus 40 to +135℃ (maximum 150℃ for 240 hours)
