0-327-01 Nylon Unsealed 90 Degree Elbow Connector 10NW

£1.43  Excl. VAT
  (£1.72 Inc. VAT)
RRP:  £1.72
Savings before Cart:  £0.29
Earn 1 Loyalty Points
Available

Weight:  10g


Model:  0-327-01
Bar Code:  5056119107647
Part Number:  0-327-01
Brand:  Durite
Size:  10NW
Colour:  Black
Material:  Nylon

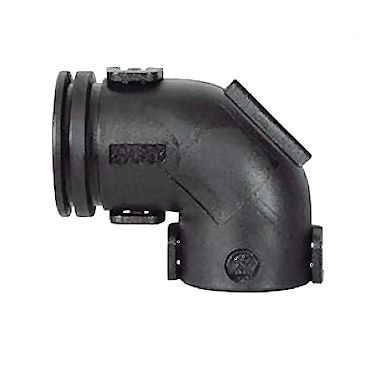

 Black nylon unsealed 90° elbow connector, for fitting onto unsplit tubing to create a 90° joint.

  • Used with unsplit tubing.
  • Size 10 NW.
  • Sold single.
  • Unsealed.
  • Black nylon.

About the 90° Elbow Connector

 Nominal width (NW) 10mm ninety-degree elbow joints for navigating unsplit tubing around a vehicle chassis. Used to house and make neat the electrical cable loom run that supplies a feed to the components.

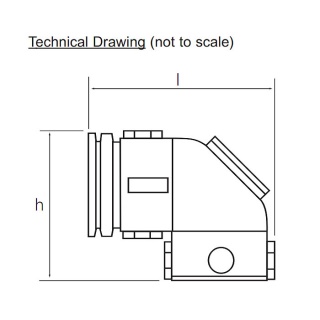

Specifications

Type 90° elbow
Port Nominal Width 10.0mm
Height (h) 28.0mm
Length (l) 35.2mm
Closure Snap together
Material Nylon (Polyamide 66)
Temperature range Minus 40 to +135℃ (maximum 150℃ for 240 hours)
Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.

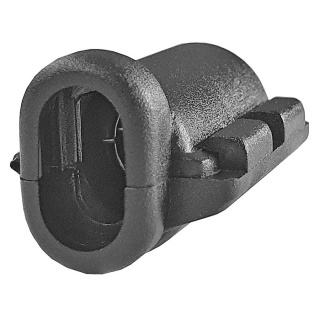

0-326-12 Nylon Unsealed Interface for Superseal 2 Way Connector 10NW
0-326-12 Nylon Unsealed Interface for Superseal 2 Way Connector 10NW

Black nylon unsealed interface for Superseal 2 way connectors, NW10 type: inline, sold in singles.

Reference: 0-326-12 £1.36   £1.13
0-327-42 Nylon Unsealed T-Piece Connector 10NW
0-327-42 Nylon Unsealed T-Piece Connector 10NW

Black nylon T-piece connector, NW A: 10, B: 10, C: 10, for fitting onto unsplit tubing to create a cable tubing junction.

Reference: 0-327-42 £1.02   £0.85

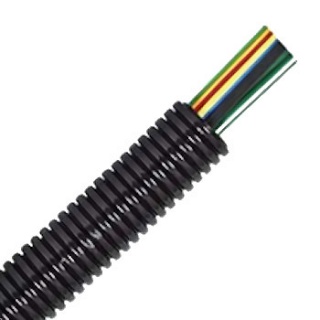

0-330-10 50m Roll Nylon Heavy-Duty Convoluted Un-split Tubing 10NW
