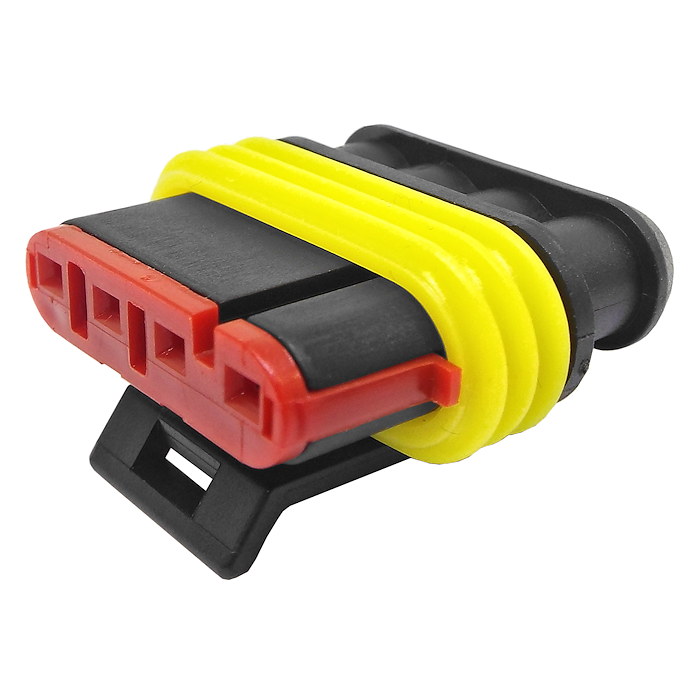

0-011-64 Superseal Connector 1.5mm Female Pin Housing 4-way
Weight: 10 g
Model: 0-011-64
Bar Code: 5056119102901
Part Number: 0-011-64
Brand: Durite
Colour Black/Yellow/Red
Voltage 12V/24V DC
Amperage 14A
Material Polyamide/Glass
Durite Superseal 1.5mm four-way female housing for automotive cables and vehicle wiring.
- 4-way connection.
- It is supplied with seals and terminals.
- Rated at 14A maximum.
- Suitable for cable sizes 0.65mm² and 1.00mm², 1.50mm² maximum (20 to 16 AWG).
- Double contact spring ensures low insertion force but maximum contact force.
- Pack Quantity: 1 piece.
Associated parts
- 0-011-54 male pin mate connector.
- 0-011-60 pack of 10 Superseal female pin sockets.
- 0-703-51 ratchet crimping tool for Econoseal and Superseal terminals.
About The Superseal Connector
Four-way tin-plated phosphor bronze terminal, 1.5mm auto electric multiple Superseal female socket connectors, with glass-filled (for strength) polyamide 6.6 housings and disconnect clip action. They are used for automotive lighting systems and circuits requiring low amperage feed and connectivity.
Superseal auto electrical connectors fast became an industry standard due to their watertight properties conforming to IEC 529 I.P. 6.7 standards, reducing terminal degradation and therefore reducing intermittent faults.
How can you use Superseal connectors? The Superseal connector replaced the standard blade and spade connectors in many 12V and 24V D.C. automotive applications. They are usually used for low-load circuits like; vehicle lighting, control panel switches and indicators, electrical engine management and auxiliary equipment.
