SW88-4 Albright Double-acting Reversing Solenoid 24V Continuous

£85.27  Excl. VAT
  (£102.32 Inc. VAT)
 Excl. VAT

Earn 85 Loyalty Points
1 in stock


Weight:  1.01 kg


Model:  SW88-4
Bar Code:  DNA
Part Number:  SW88-4
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

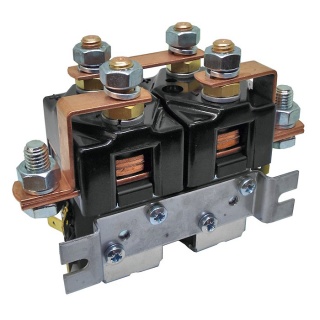

 Albright SW88-4 24Vdc 100 Amps double-acting strapped pair solenoid contactor, continuous.

  • Double-acting strapped pair 24 Volts DC contactor for motor-reversing.
  • The SW88 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as Light Industrial Trucks, Powered Invalid Cars, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2070-151.
  • Auxiliary switch kit part number: 2070-124 (1 kit does 1 x coil).

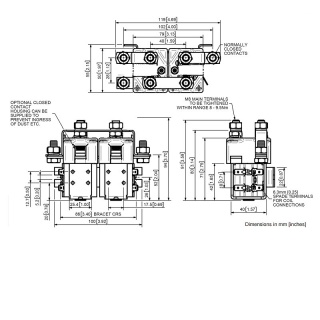

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Coil width including bars: 119mm.
  • Cap width: 2 x 39mm.
  • Total depth including bracket: 55mm.

About The Continuous SW88-4 Reversing Contactors

 Continuous contactors by design are predominantly for drive functions on vehicles; they make and break slower than intermittent solenoids, and are recommended for prolonged contact periods.

 The SW88 is a configuration of two SW84 type contactors on a common bracket for motor reversing. The SW88 features single pole double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

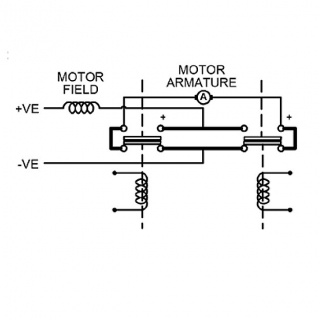

 The SW88 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW88 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type Strapped Pair
Voltage 24V D.C.
Coil Type Continuous
Amps 100A
Coil Resistance (Ohms) 52
Pull-In Voltage (V) 16.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 11.08
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 960kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
