SW88-34 Albright Double-acting Reversing Solenoid 12V Intermittent

£95.50  Excl. VAT
  (£114.60 Inc. VAT)
 Excl. VAT

Earn 95 Loyalty Points
No stock


Weight:  1.01 kg


Model:  SW88-34
Bar Code:  DNA
Part Number:  SW88-34
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

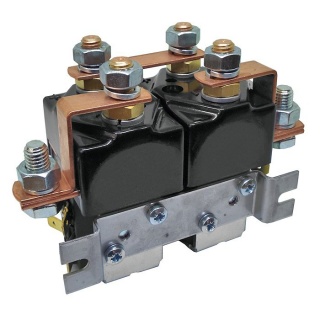

 Albright International SW88-34 12Vdc 100 Amps double-acting strapped pair contactor with enclosed top covers, intermittent.

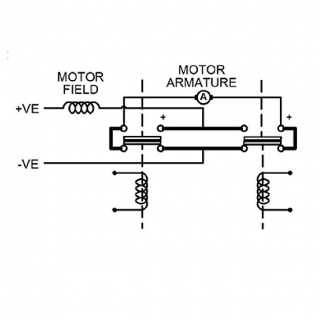

  • Double-acting strapped pair 12 Volts DC contactor for motor-reversing.
  • The SW88 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as Light Industrial Trucks, Powered Invalid Cars, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2070-151.
  • Auxiliary switch kit part number: 2070-124 (1 kit does 1 x coil).
  • These units have an enclosed top cover.

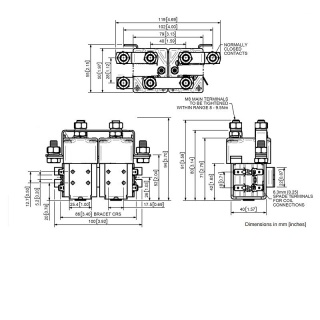

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Coil width including bars: 119mm.
  • Cap width: 2 x 39mm.
  • Total depth including bracket: 55mm.

About The Intermittent SW88-34 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW88 is a configuration of two SW84 type contactors on a common bracket for motor reversing. The SW88 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW88 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW88 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type Strapped Pair
Voltage 12V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 9.0
Pull-In Voltage (V) 9.0 Max.
Drop Out Voltage (V) 3.5 Max.
Coil Power Dissipation (W) 16.00
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 960kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

2070-151 Albright SW88 Series Contact Kit
2070-151 Albright SW88 Series Contact Kit

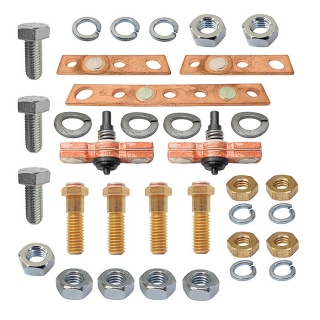

Albright SW88 contact kit, consisting of two moving contacts, four contact studs with nuts and washers, two short bar and one long bar contact.
